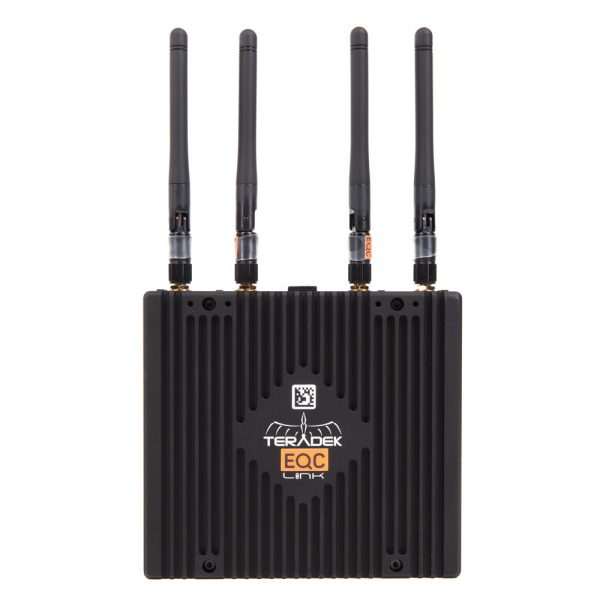

Teradek Link Mobile Dual Band WiFi Access Point

Link is a ruggedized dual band WiFi router. Designed for use in broadcast and cinema applications, Link offers incredible range, several power options and a chassis suitable for regular abuse in the field and on set.

Dual Band 2.4 / 5 GHz | 802.11ac WiFi

Link supports the latest in WiFi standards and is backward compatible with 802.11 a/b/g/n.

Long Range Coverage

With 1000ft of range, Link offers enough WiFi coverage to blanket most medium sized venues.

High Throughput and Interference Resistant

Link’s quad core processor and significant internal memory ensure high data throughput despite numerous clients utilizing the network at once. Compared to typical consumer access points, Link offers optimized buffering and packet re-transmission, allowing you to maintain a consistent connection even in tough RF environments.

Super Rugged and Flexible Mounting

Link’s aluminum chassis allows it to withstand the daily abuse common in production environments or in the field. With several ¼”-20 mounts, the device can easily be mounted onto light stands, DIT carts, or OB vans.

External Battery Connection

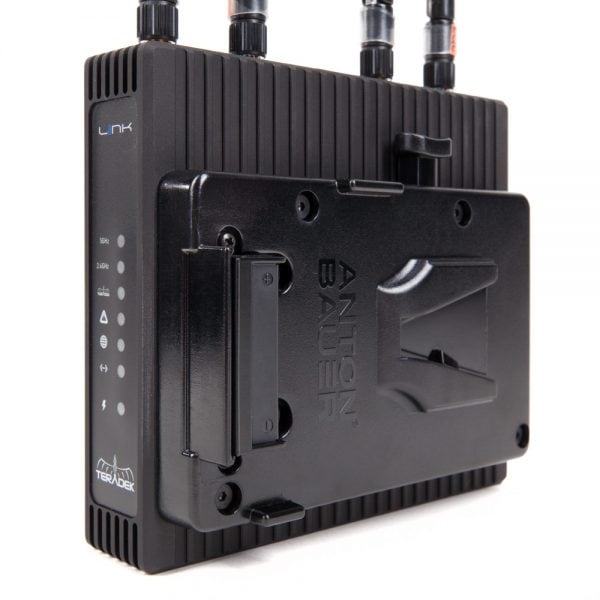

Attach a V-mount battery adapter to power Link for extended periods of time in the field.

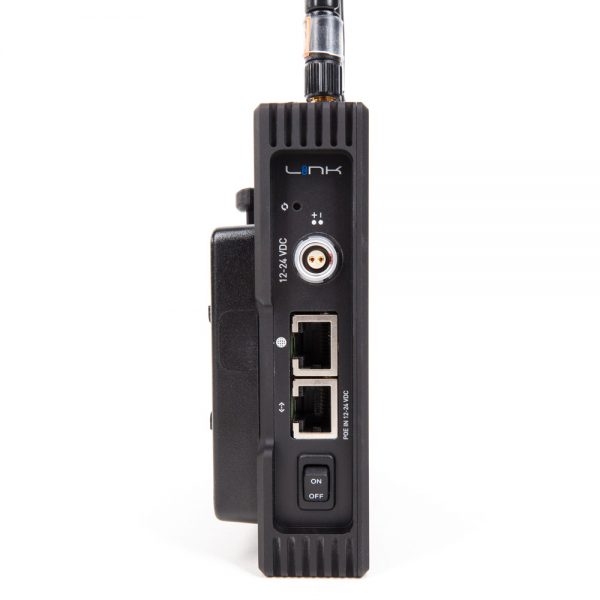

PoE Power

Link’s passive PoE connection allows the system to be powered in line with the Teradek Sphere or any other PoE injector for a more streamlined setup on set.

Network Security

Link offers standard WiFi network protection, including WEP, WPA, and WPA2 security.

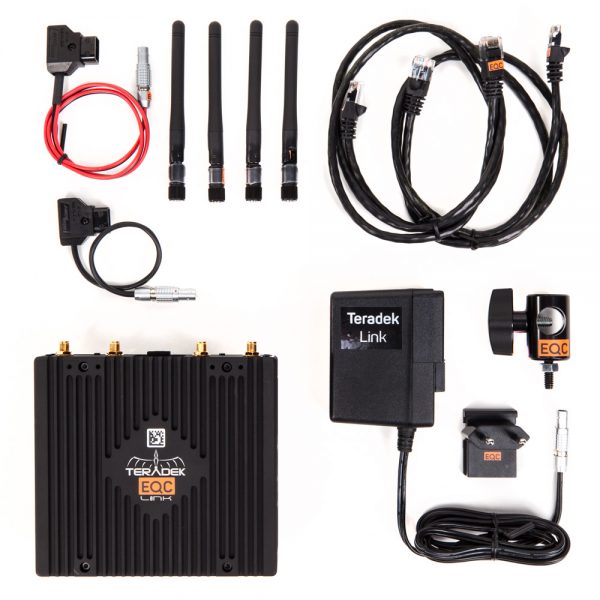

In the Case

• V-Mount plate
• AC adapter
• 2x D-Tap power cable
• 4x antenna
• 1x light stand mount
• 2x CAT5 cable
• User manual (2 pages)

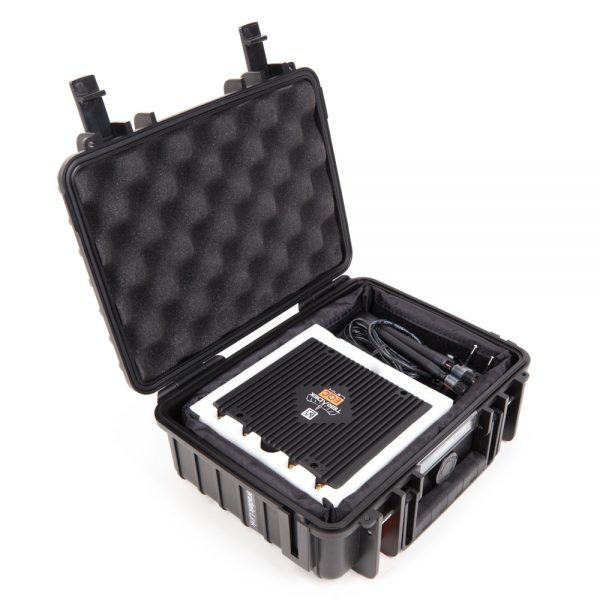

• Hard case
