| Network | |
|---|---|
| LTE | USA: LTE FDD Cat 4, Bands 2,4,5,13,17 Please see other models for Support in Other Regions |
| UMTS | USA: HSDPA Cat 24, HSUPA Cat 6, Bands 850/1900 Please see other models for Support in Other Regions |
| RF | 2×2 MIMO SMA Band 17 (700 MHz), Band 13 (750 MHz) Band 5 (850 MHz) Band 4 (1700 MHz) Band 2 (1900 MHz) |
| Power Class | Class 3 23dBm LTE mode Class 3 24 dBm for UMTS/HSDPA/HSUPA mode |
| Data Rate | LTE cat. 4: up to 150 Mb/s DL, 50 Mb/s UL HSDPA cat.14, up to 21 Mb/s DL HSUPA cat.6, up to 5.6 Mb/s UL |
| SIM | Full size SIM |
| Physical Dimensions | 3.258″ W x 0.728″ D x 2.333″ [82.75 x 18.5 x 59.25 mm] |
| Weight | 4oz. (110g) |
| Construction | Milled Aluminum (Chassis), regulationcompliant PCB |
| Mountability | 1/4"-20 threaded hole, 2x 4-40 threaded holes, Additional mounting options available |
| Environmental | |
| Operating | -10ºC to 50ºC |
| Storage | -40ºC to 90ºC |
| Humidity | Operating: 5% to 95% (non-condensing) Storage: Max. 90% |
| Interface | 2 Status LEDs |
| Interface | USB to 4-pin connector |

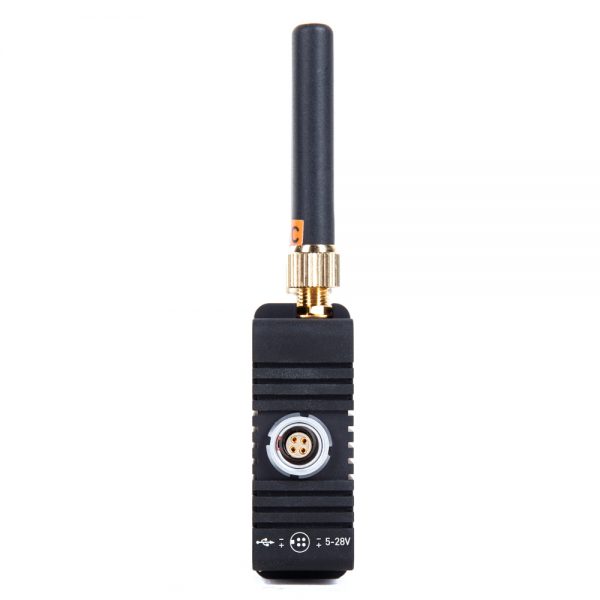

| Power Input | 2-pin connector, 5–28V |
| Battery | None |
| Nominal Power Consumption | 5W Max |

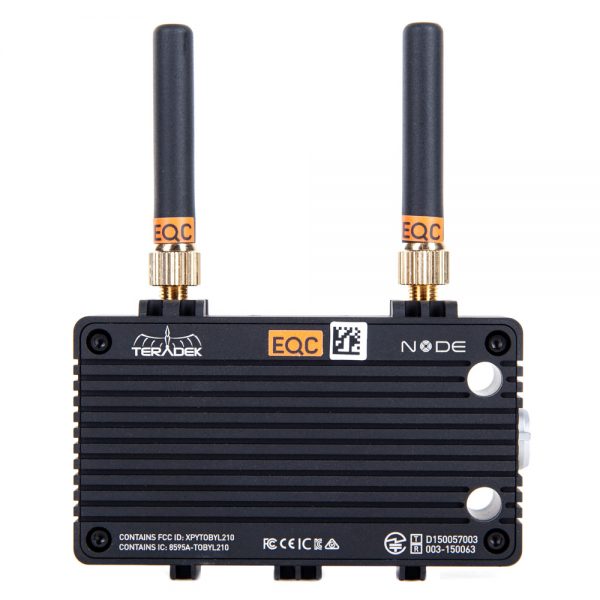

The Teradek Node Europe / Asia LTE cellular modem is a high performance 3G / 4G / LTE modem that provides exceptional connectivity and weather resistance compared to traditional USB modems. The Modem can be powered directly from the VidiU Pro or Link through the included Lemo > USB cable. Additional power is not necessary.
The pre-installed SIM card allows you unlimited upload up to 3Mbit. If you need higher upload speed, please give us a call concerning suitable SIM cards.
