Blustream SP14AB-V2 4-Way 4K HDMI Splitter

  • Features 1 x HDMI input that is replicated to 4x HDMI outputs
  • Supports HDMI 2.0 18 Gbps specification including HDR
  • Supports up to 4K UHD 60Hz 4:4:4
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
  • HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently
  • Advanced EDID management
  • HDCP 2.2 Support

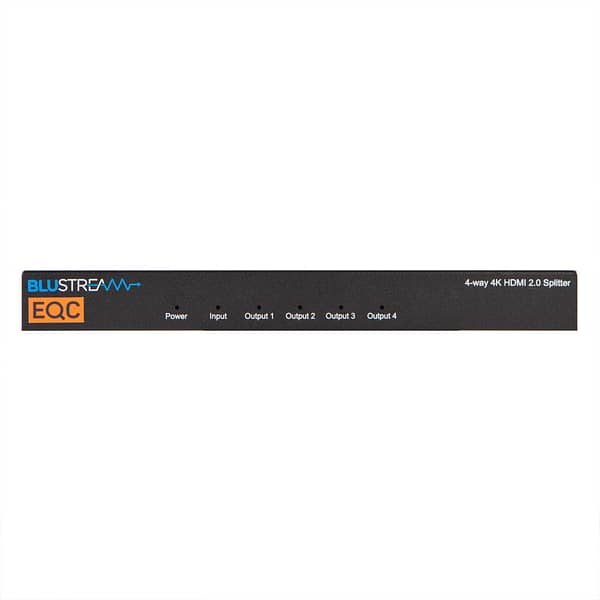

The Blustream SP14AB-V2 4-Way 4K HDMI Splitter splitter distributes a single HDMI source to four simultaneous outputs. The splitter supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4.

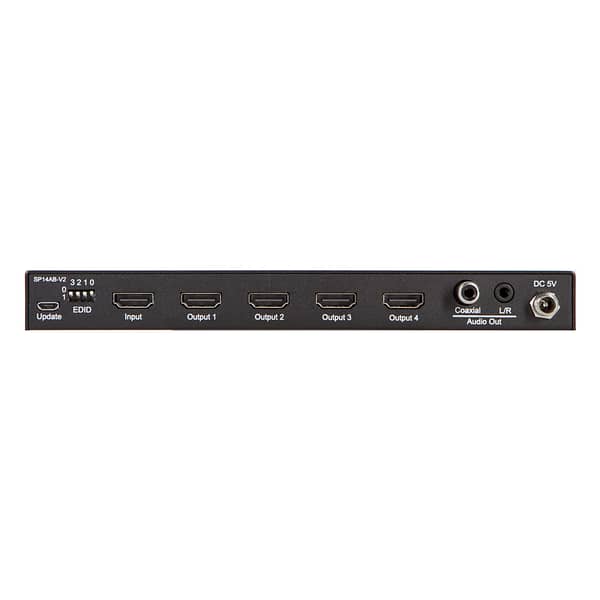

The EDID configuration can be modified using the dip-switches located on the rear panel of the splitter. Doing so you must power-cycle the HDMI splitter after changes have been made in order for the EDID settings to update.

It supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K at 60Hz 4:4:4. The splitter includes an audio breakout from the selected HDMI input to associate analogue L/R and coaxial digital outputs. The extracted audio will be concurrent with the corresponding HDMI video output whilst the input must be PCM 2ch audio for the analogue audio outputs to work. (Splitter does not down-mix multi-channel audio signals)

In the Case

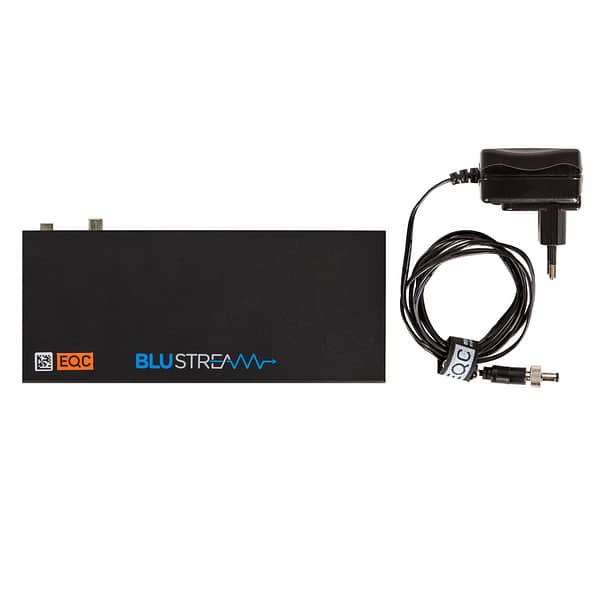

  • Blustream 4-Way 4K HDMI Splitter
  • AC adapter
  • Quick reference guide
  • EQC bag


  • Video Input Connectors: 1 x HDMI Type A

  • Video Output Connectors: 4 x HDMI Type A

  • EDID: 4-pin DIP switch

  • Audio Output Connectors: 1 x RCA (S/PDIF), 1 x Analogue audio L/R (3.5mm stereo jack)

  • Dimensions (W x D x H): 203mm x 84mm x 23mm , without feet

  • Shipping Weight: 0.5kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)

  • Power Supply: 5V/2A DC
