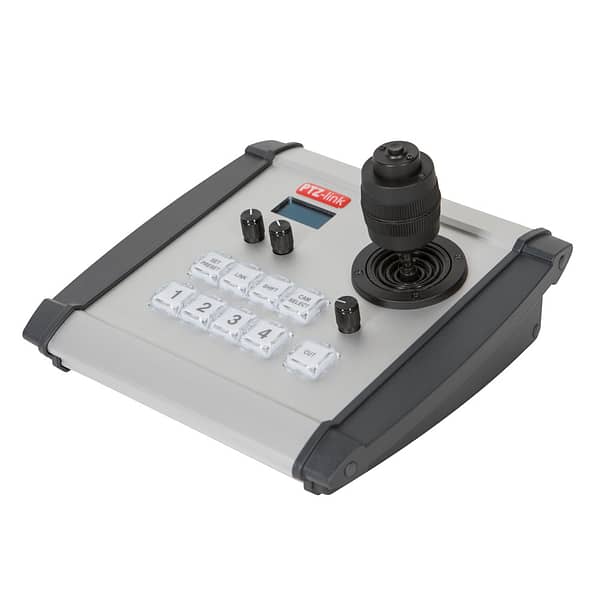

PTZ-link Universal PTZ Controller

  • Universal pan/tilt/camera controller
  • Controls up to 8 cameras
  • Supported protocols: vMix, ATEM. OBS, Wirecast
  • Works with Pan/Tilt Remote Head for Blackmagic Design Micro Studio Camera 4K


The PTZ-link Universal PTZ Controller is a  flexible remote camera controller for major brands of serial and IP PTZ cameras.

Up to 8 cameras can be controlled, each with a maximum of 8 presets (combined with Shift). Protocols can be mixed.
When linking the controller to a videoswitcher, in slave mode camera selection follows preview selection on the switcher. In master mode, camera selection sets the preview input on the switcher.

The controller serves as a complete control solution in small setups, or as an extra controller in larger settings. Its intuitive user interface makes it easy to operate.
The controller is menu-configured via a rotary push-button and an 1.3″ OLED display. It is connected to the network and powered via an AC adapter or PoE.
3 rotary controls are included for menu entry and speed setting, for focus adjust and for exposure control.

In the Case

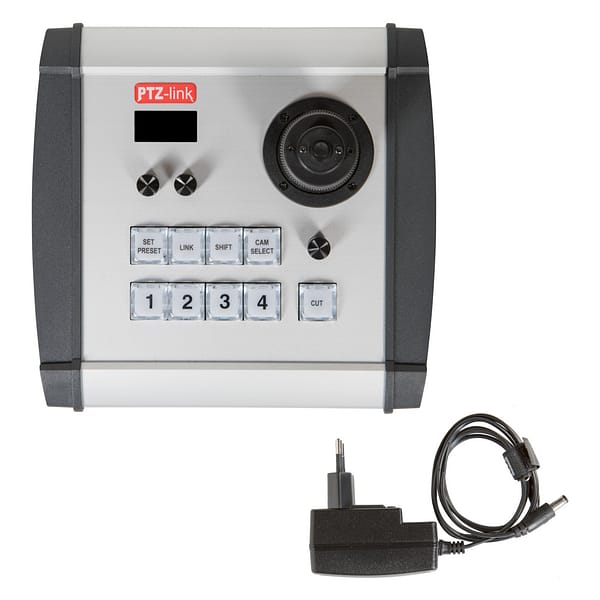

  • PTZ-link Universal PTZ Controller
  • AC adapter
  • Connector block

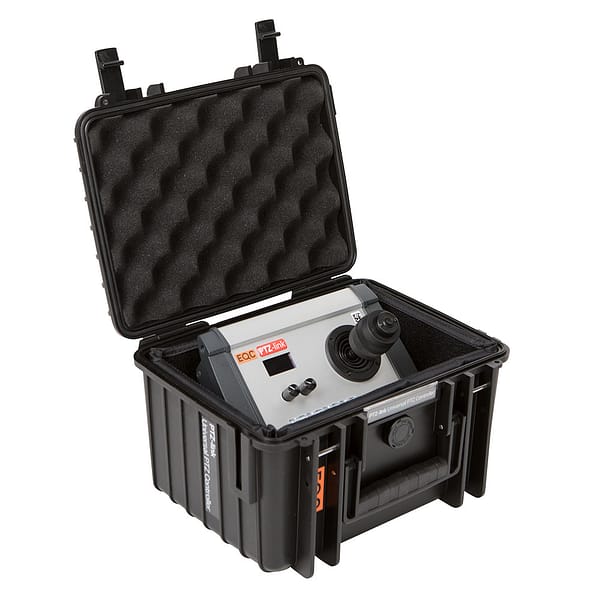

  • Hard case

Supported camera protocols:
Pelco 2400 baud
Visca 9600 baud
Visca over IP
PTZ optics visca IP
Panasonic CGI
Everet IP
(vMix virtual PTZ)
(Datavideo IP)

Supported mixer/link protocols:
Blackmagic design ATEM
