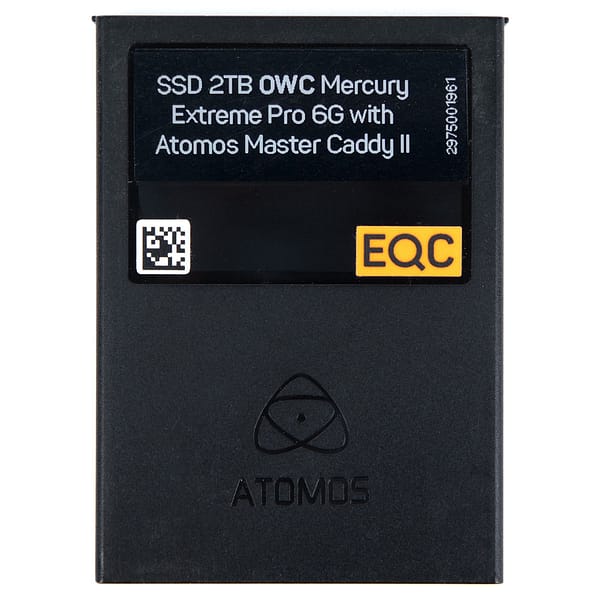

SSD 2TB OWC Mercury Extreme Pro 6G with Atomos Master Caddy II

  • 2TB SSD Storage in Atomos Master Caddy II
  • 2GB of Flash Memory
  • SATA III 6 Gb/s Interface
  • Up to 525 MB/s Sequential Read Speed
  • Certified for nearly all supported codecs


Designed with a Silicon Motion SM2246EN Series controller and Tier 1 43D NAND flash, the SSD 2TB OWC Mercury Extreme Pro 6G with Atomos Master Caddy II is the perfect SSD when it comes to reliable storage of your production recording.

With solid-state drive technology, you benefit from load and access times for your files and programs that are faster than a conventional hard disk drive. Sustained read speeds of up to 525 MB/s and sustained write speeds of up to 402 MB/s allow you to access data stored within the drive quickly and efficiently.

In the Case
  • 2TB OWC Mercury Extreme Pro 6G SSD
  • Atomos Master Caddy II
Categories: ,


  • Phison PS3112-S12 with 7% over-provisioning

NAND Flash Components

  • Synchronous Triple-Level Cell (TLC) 3D NAND Flash


  • SATA 6Gb/s (backwards compatible to 3Gb/s and 1.5Gb/s)


  • Unformatted

RAID Support

  • RAID 0/1/4/5/10/0+1 and SPAN

Available Capacities

  • 240GB, 480GB, 1TB, 2TB, 4TB


  • Peak data rate: 550 MB/s Read, 530 MB/s Write

I/O Per Second (IOPS)

  • Sequential 4K Read: up to 100K IOPS
  • Sequential 4K Write: up to 90K IOPS


  • Mean Time Between Failure (MTBF): 1.6 million hours
  • Uncorrectable Bit Error Rate (UBER): Less than 1 sector per 1016 bits read


  • Supports: Secure Erase, Crypto Erase, and Physical Presence SID (PSID)

TRIM Support

  • OS dependent

SMART Attributes

  • Standard


  • Read: less than 0.1 ms
  • Write: less than 0.1 ms


  • Height: 0.3 in (7.0 mm)
  • Width: 2.8 in (70.1 mm)
  • Length: 3.9 in (100.1 mm)


  • 2.7 oz (77.0 g)


Environmental (Operating)

  • Temperature (°F) 32°F to 158°F
  • Temperature (°C) 0°C to 70°C

Environmental (Non-Operating)

  • Temperature (°F) -40°F to 185°F
  • Temperature (°C) -40°C to 85°C
