Teradek Serv Pro HD-SDI / HDMI Video WiFi Server

  • Streams to up to 10 iOS devices, directly or over LAN
  • Supports all standard flavors of Full HD
  • Embeds 2 channels of audio
  • Professional monitoring software VUER is free
  • Monitor up to 4 Serv Pro on one iOS device with split screen

€50,00

Related products

Serv Pro is a hardware streaming device that allows up to 10 iPhones and iPads to monitor a video feed in HD over WiFi. Perfect for script supervisors, hair & makeup, classrooms, and documentary shoots, Serv Pro offers a compelling monitoring alternative to zero delay wireless video systems.

Stream over local networks

Serv connects to cameras via HDMI or 3G-SDI and streams over 2.4 / 5Ghz WiFi or ethernet to iOS devices connected to the same network. Each unit supports up to 10 simultaneous connections, whether you connect directly to Serv Pro or to the same wireless access point.

High definition and low latency

Each Serv Pro feed is streamed at 1080p with just a 2 frame delay. The video stream also includes a stereo audio channel that can be enabled or disabled from the Vuer iOS application.

Works harmoniously with Teradek Bolt and Paralinx products

Serv Pro operates on 5Ghz WiFi and is a complementary tool to zero delay wireless systems like the Bolt series. With proper frequency management, these systems will work together without interference.

Professional monitoring with VUER

The VUER application for iOS puts an entire cinematographers toolset in your hands, allowing you to use vectorscopes, false color, focus peaking, and more on each Serv Pro feed you’re monitoring. The application is free to use and can be customized to to allow users full or limited access to the toolset.

Monitor up to 4 live feeds at one time

VUER can monitor up to 4 Serv Pro feeds at the same time, all in 1080p and all at the same 2 frame delay.



In the Case
  • AC power supply
  • 2x D-Tap power cable
  • 2x Slim HDMI 0.75m cable
  • 2x coiled BNC cable 0.5m
  • 4x antenna
  • Cold shoe to 1/4″ male adapter with 2 screws
  • CAT5E cable 0.9m
  • EQC bag
  • manual
  • hard case

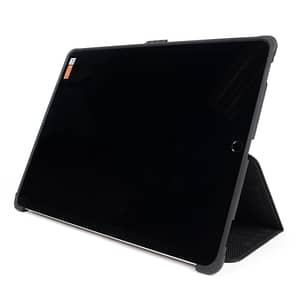

Get your compatible iPad Here

Categories: ,
  • 1 x SD/HD-SDI (75 Ohm BNC)
  • 1 x HDMI Type-A receptacle

Bonding

  • None
  • 1080p 23.98/24/25/29.97/30/50/59.94/60*
  • 1080i 50/59.94/60
  • 1080PsF 23/24/25/29/30
  • 720p 50/59.94/60
  • 576i
  • 480i
  • 480p (for HDMI input only)
  • 576p (for HDMI input only)
  • *Ingests 1080p50/59/60

Video Compression

  • H.264, Baseline, Main and High Profile

Supported Video Bitrate

  • 250 Kbps to 15 Mbps*
  • *15 Mbps (wired), 10 Mbps (WiFi)

Supported Video Bitrate Details

  • 5 Mbps
  • 4 Mbps
  • 3 Mbps
  • 2.5 Mbps
  • 1.5 Mbps
  • 1 Mbps
  • 750 Kbps

Supported Output Resolutions

  • Configured via Vuer app:
  • 1920×1080
  • 1536×864
  • 1280×720
  • 960×540
  • 480
  • 260
  • 270

Test Pattern Generator Support

  • Supports Custom Test Pattern

Video Format Conversion Support

  • Built in Video Scaler and Deinterlacer

Color Correction

  • None

Network Protocol Support

  • TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP

Supported Video Transport Protocols

  • Teradek Streaming Protocol (compatible with Teradek Apps, e.g. Live:Air, Vuer)

Remote Control

  • No Core Support

Software Or Platform Integration

  • Streaming Platforms not supported directly through device but via the Live:Air app

Audio Compression

  • AAC-LC, MPEG Layer 2

Audio Input

  • Embedded Audio Input
  • Analog Line or Mic in, adjustable gain

Audio Output

  • No audio output
  • 120.7 x 76.2 x 27.9mm (4.75″W x 3″D x 1.1″H)

Weight

  • 328.9g (11.6oz)

Construction

  • Milled Aluminum
  • WebUI for Configuration and Control

Configuration Interfaces

  • OLED Display with joystick Navigation buttons
  • Feature-rich WebUI for configuration and control

Switches

  • On/Off and Reset Switch

Recording Storage

  • No Recording

Mobile App

  • Vuer, Live:Air

Usb Interface Functionality

  • None

Ethernet

  • 10/100/1000 BASE-T Gigabit

Wireless

  • WiFi: 2.4/5GHz 802.11 ac/a/b/g/n MiMo

Usb

  • None

Rf Channel Selection

  • Auto with 3 modes: (2.4 or 5 Ghz), Auto (2.4 GHz only), Auto (5 Ghz only)

Power Input

  • 2 Pin Connector Power input

Battery

  • No Battery Included

Nominal Power Consumption

  • 8W, 7W (no WiFi)

Auxilary Power Input

  • 6-28V DC

Mountability

  • Can be mounted horizontally or vertically with
  • 1/4″ 20 mounting holes
