| Connections |
| Total Video Inputs |
4 |
| Total Outputs |
2 |
| Total Aux Outputs |
1 |
| Total Audio Inputs |
2 x 3.5mm stereo mini jack. |
| Total Audio Outputs |
None, embedded audio only. |
| Timecode Connection |
None |

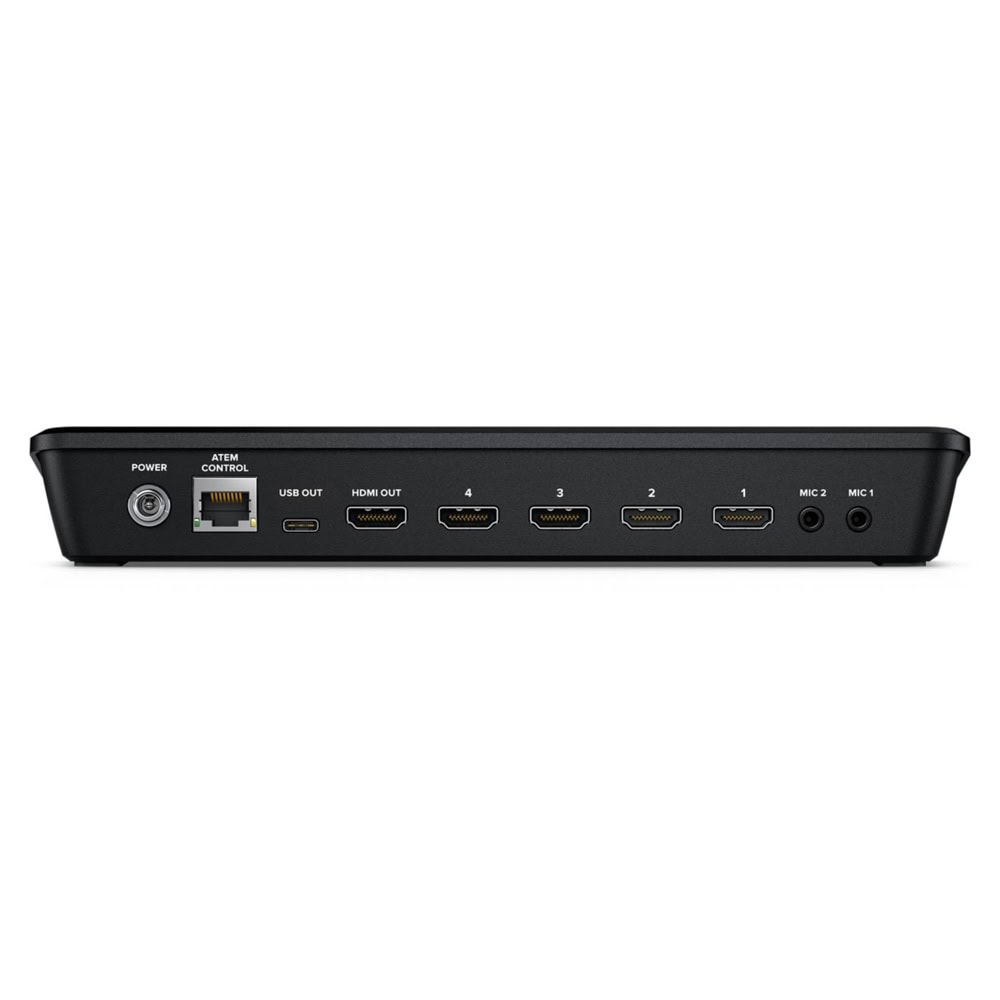

| HDMI Video Inputs |
4 x HDMI type A, 10-bit HD switchable.
2 channel embedded audio. |
| Video Input Re-Sync |
On all 4 HDMI inputs. |
| Frame Rate and Format Converters |
On all 4 HDMI inputs. |
| HDMI Program Outputs |
1 |
| Ethernet |
Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection. |
| Computer Interface |
1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection. |
| Standards |
| HD Video Input Standards |
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60 |
| HD Video Output Standards |
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| Video Streaming Standards |
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| Ultra HD Video Standards |
None |
| Video Sampling |
4:2:2 YUV |
| Color Precision |
10-bit |
| Color Space |
Rec 709 |
| HDMI Input Resolutions from Computers |
1280 x 720p 50Hz, 59.94Hz and 60Hz
1920 x 1080p 23.98, 24, 25, 29.97,30, 50, 59.94 and 60Hz
1920 x1080i 50 and 59.94Hz 60Hz |
| Colorspace Conversion |
Hardware based real time. |
| Audio Mixer |
6 input x 2 channel mixer.
Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands
of parametric EQ.
Master gain control. |
| Product Specifics |
| Upstream Keyers |
1 |
| Downstream Keyers |
1 |
| Advanced Chroma Keyers |
1 |
| Linear/Luma Keyers |
2 |
| Transition Keyer |
DVE only. |
| Total Number of Layers |
5 |
| Pattern Generators |
1 |
| Color Generators |
2 |
| DVE with Borders and Drop Shadow |
1 |
| Interface |
Minimum monitor resolution of
1366 x 768. |
| Streaming |
| Direct Streaming |
ATEM Mini Pro supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP). |
| Recording |
| Direct Recording |
1 x USB-C 3.1 Gen 1 expansion port for external media to direct record a .mp4 H.264 with AAC audio at the ATEM video standard. |
| Media Format |
Can format media to ExFAT (Windows/Mac)
or HFS+ (Mac)
file systems. |
| Multi View Monitoring |
| Multi View Monitoring |
1 x 10 Views including left right configurable Program/Preview, 4 HDMI inputs, Media Player, Streaming Status, Recording Status and Audio Meters. |
| Multi View Video Standard |
HD |
| Media Player |
| Media Players |
1 |
| Channels |
Fill and key for each Media Player. |
| Media Pool Still Image Capacity |
20 with fill and key. |
| Media Pool Still Image Format |
PNG, TGA, BMP, GIF, JPEG and TIFF. |
| Control |
| Control Panel |

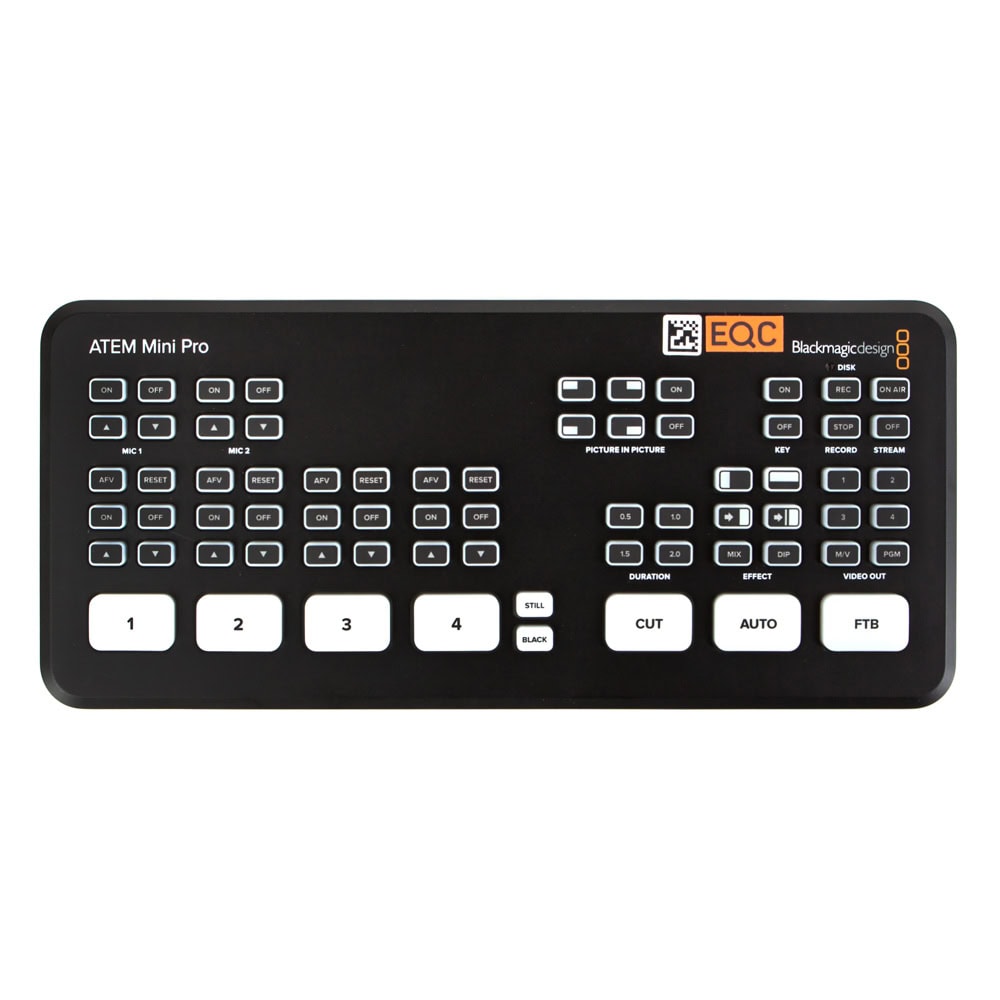

Built in control panel. Software control panel with camera control included. Supports optional hardware panel. |
| Control Panel Connection |
Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Pro also supports direct USB-C connection. Ethernet or USB-C used for updating the software. |
| Control Panel Compatibilty |
Includes ATEM Software Control Panel.
Also compatible
with ATEM 1 M/E Advanced Panel
and ATEM 2 M/E
Broadcast Panel. |
| Control Panel Included |
ATEM Software Control Panel included free for Mac 10.14 Mojave, Mac 10.15 Catalina or later and Windows 10 64 bit only. |
| Software |
| Software Updates |
Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility. |
| Configuration |
Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis. |
| Operating Systems |
|
Mac 10.14 Mojave,
Mac 10.15 Catalina or later. |
|
Windows 10,
64-bit. |
| Power Requirements |
| Power Supply |
1 x External 12V power supply. |
| Power Usage |
36W |
| Environmental Specifications |
| Operating Temperature |
5° C to 40° C (41° – 104° F) |
| Storage Temperature |
-10° to 60° C (14° to 140° F) |
