€45,00 /Shoot Day
| Display | |
|---|---|
| Screen | 28" / 71.1 cm |
| Resolution | 3840 x 2160 |
| Aspect Ratio | 16:9 |
| Brightness | 450 cd/m² |
| Contrast Ratio | 1000:1 |
| Viewing Angle (H/V) | 178°/178° |
| Input / Output | |
| Input | 1 x 3G-SDI 1 x HDMI 2.0 3 x HDMI 1.4 1 x DVI 1 x 4-Pin XLR 1 x VGA 1 x Stereo RCA audio 1 x VGA tally |
| Output | 1 x 3G-SDI 1 x 3.5 mm Headphone jack |
| Audio | |
| Speaker | 2 x L/R |
| Headphone Output | 1 |
| Power | |
| Current Draw | 2800 mA (15 V) |
| Input Voltage | 12 to 24 VDC (XLR) |
| Power Consumption | ≤48 W |
| Physical | |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Dimensions | Without Case: 67 x 42.5 x 4.5 cm (26.4 x 16.7 x 1.7") With Case: 76.1 x 47.4 x 17.3 cm (30 x 18.7 x 6.8") |
| Weight | Without Case: 9.4 kg (20.7 lb) With Case: 23.5 kg (51.8 lb) |

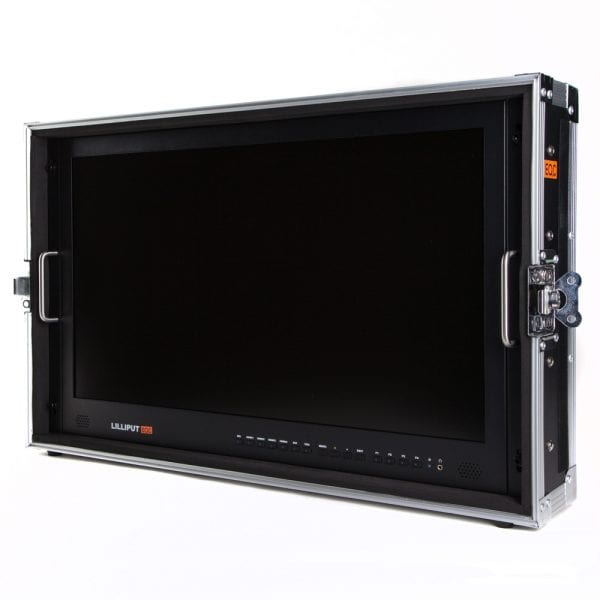

The hard-cased Lilliput BM280-4K is a 28″ native UHD 4K monitor with 3840×2160 resolution. The 10-Bit IPS panel can be driven at up to 30 fps by any of the three HDMI 1.4 inputs, or up to 60 fps by the single HDMI 2.0 input. Other inputs available on the back panel include SDI (with a loop output), DVI, and VGA. Video signals input via any of these ports will be properly scaled to fit the entire screen. Analog audio from the RCA inputs or embedded digital audio from video inputs can be heard using the monitor’s built-in speakers or the 3.5mm headphone output.

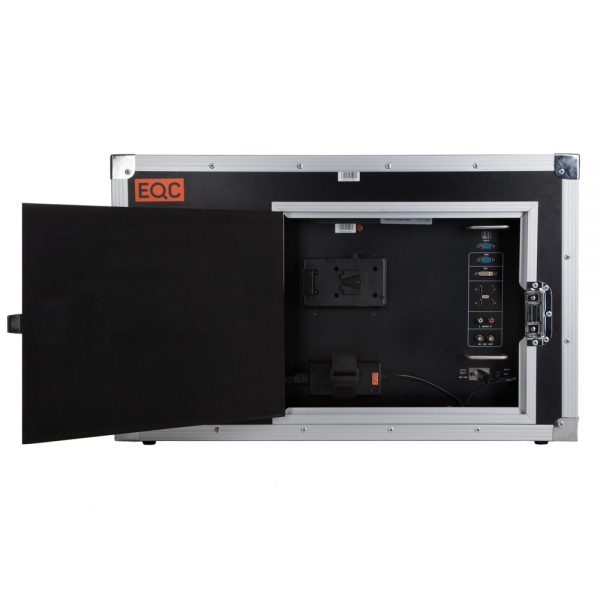

The included power supply plugs the BM280-4K into the wall -for portable power, use a V-Mount battery on the integrated V-Mount plate.
Find suitable V-Mount batteries here: V-Mount Batteries
