€50,00 /Shoot Day
| Connections | |
|---|---|
| SDI Video Input | 4 x 10-bit SD/HD/6G-SDI |
| SDI Video Output | 4 x 10-bit SD/HD/6G-SDI loop outputs |
| Multi-View Outputs | 1 x 10-bit HD/6G-SDI 1 x HDMI, type A (supports EDID of the monitor) |
| Multi-Rate Support | Auto detection of SD, HD, or 6G-SDI. Simultaneous viewing of 4K, HD, and SD video. |
| Updates | USB 2.0 high speed (480 Mb/s) interface or via Ethernet |
| Control | 1 x RJ45 Ethernet |
| Configuration | Via RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting |
| Reclocking | On all SDI outputs; auto switching between SD, HD, or 6G-SDI video |
| Standards | |
| Format Support | SD Format Support 625/25 PAL 525/29.97 NTSCHD Format Support 720p 50/59.94/60 1080i 50/59.94/60 1080PsF 23.98/24/25/29.97/30 1080p 23.98/24/25/29.97/30/50/59.94/602K Format Support 2048x1080p 23.98/24/25 2048x1080PsF 23.98/24/254K Format Support 3840x2160p 23.98/24/25/29.97/30 4096x2160p 24 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-B, ITU-R BT.656, and ITU-R BT.601 |
| SDI Video Rates | SD-SDI: 270 Mb/s HD-SDI: 1.5 Gb/s 3G-SDI: 3 Gb/s 6G-SDI: 6 Gb/s |
| SDI Video Sampling | 4:2:2 and 4:4:4 |
| SDI Color Precision | 4:2:2 and 4:4:4 10-bit |
| SDI Color Space | Inputs: YUV or RGB Outputs: YUV |
| SDI Audio Sampling | 48 kHz and 24-bit |
| SDI Metadata Support | Video payload identification ancillary data as per SMPTE 352M |
| Software | |
| Software Control | Multi-view control software included free for Windows and Mac OS X |
| Internal Software Upgrade | Via included updater application |
| General | |
| Power Supply | IEC power cable required 90 to 240 VAC input PoE+: 48 VDC |
| Power Consumption | 16 W |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Storage Temperature | -20 to 45°C (-4 to 113°F) |
| Relative Humidity | 0 to 90% non-condensing |
| Rack Space | 1 RU |
| Dimensions (W x H x D) | 13.99 x 4.45 x 16.99 cm (5.51 x 1.75 x 6.69") |
| Weight | 0.58 kg (1.28 lb) |
The Blackmagic Design MultiView 4 features four 10-bit 6G-SDI inputs that let you monitor SD, HD, or 4K sources in any combination on Ultra HD monitors or TVs. This lets you take advantage of high resolution displays to view each source with increased clarity.

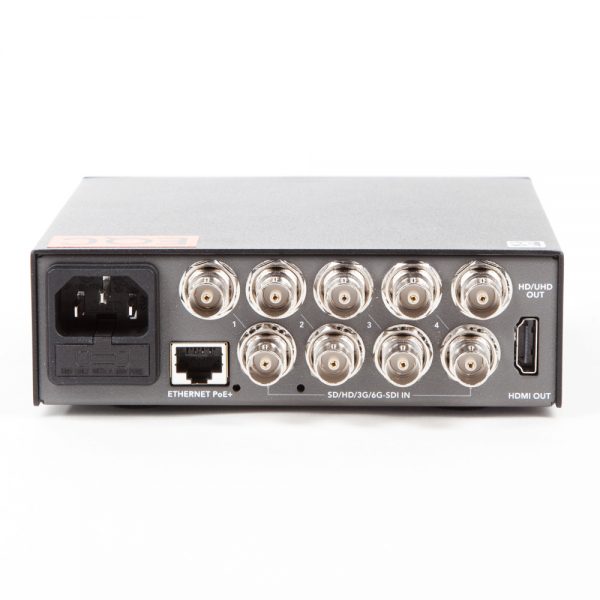

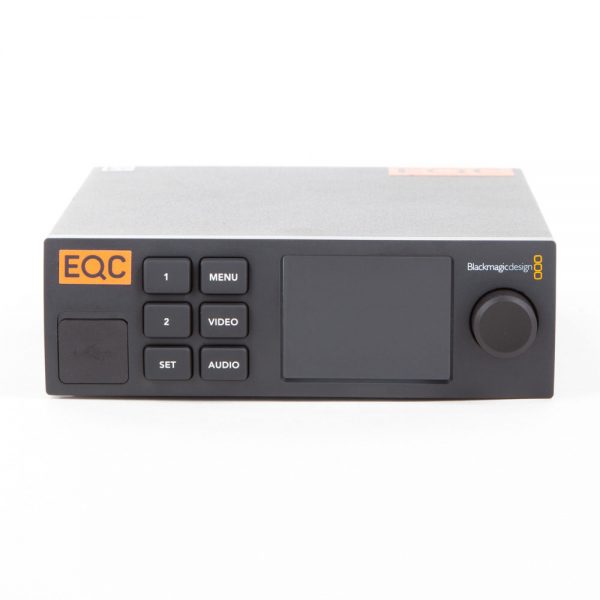

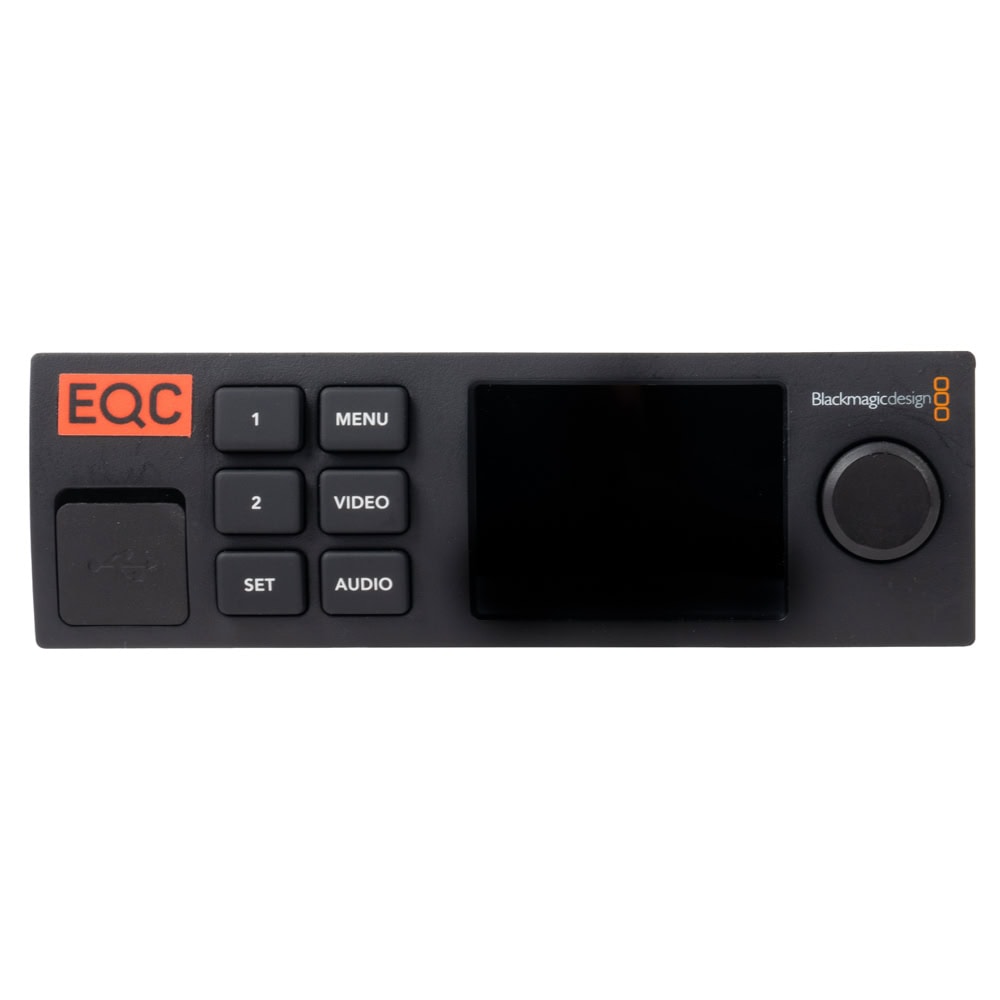

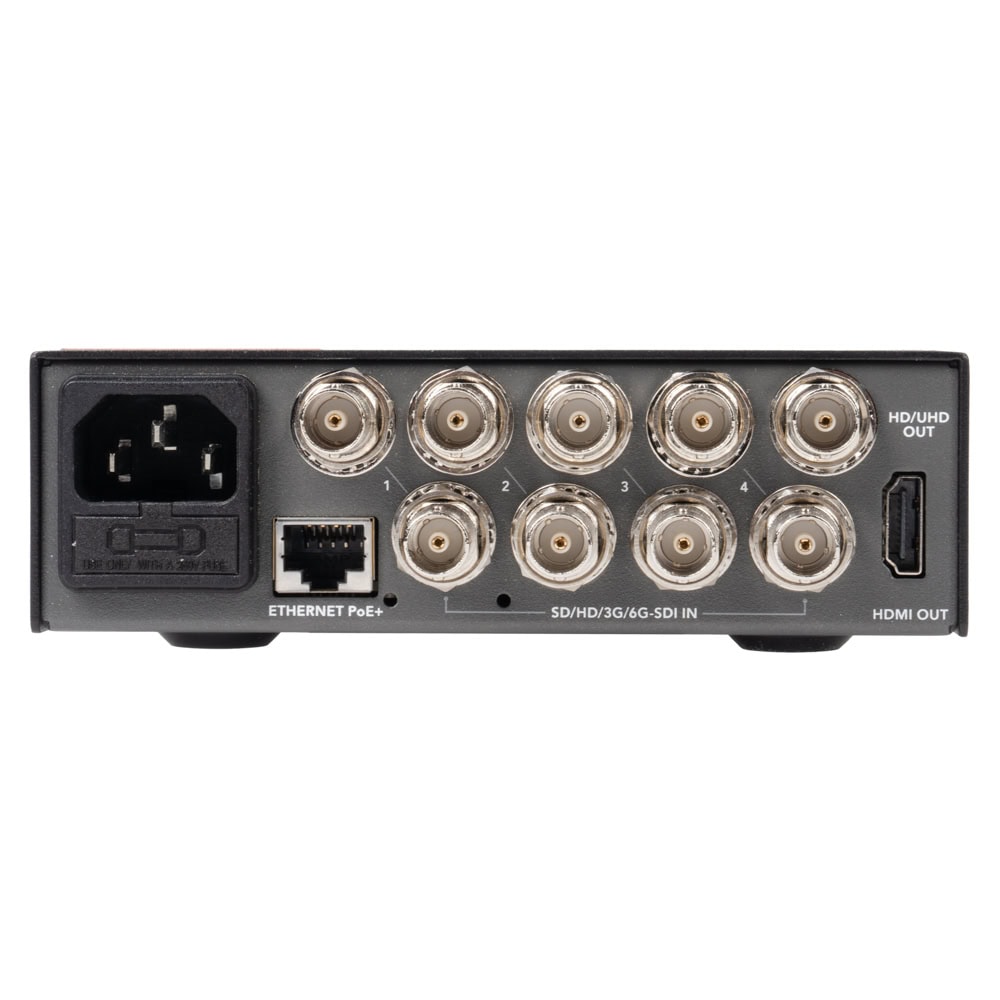

The MultiView 4 allows for 2×2 display with each input fully re-synchronized. One 6G-SDI output and one HDMI multi-view output are provided, as well as a loop output for each 6G-SDI input for passing the signals to additional devices. It can be easily controlled with the attached Teranex front panel or via Ethernet port.
