| Connections |
| SDI Video Inputs |
Switchable between SD, HD and 6G‑SDI. |
| Reclocking |
Yes |
| SDI Video Outputs |
8 outputs automatically match the SDI video input. |
| Multi Rate Support |
Auto detection of SD, HD or 6G‑SDI. |
| Standards |
| SD Video Standards |
525i59.94 NTSC, 625i50 PAL |
| HD Video Standards |
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60 |
| 2K Video Standards |
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF |
| Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 |
| 4K Video Standards |
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p |
| SDI Compliance |
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M‑B, SMPTE 425M, SMPTE ST‑2081 |
| SDI Video Rates |
SDI video connections are switchable between SD, HD, Ultra HD and DCI 4K. |
| SDI Video Sampling |
4:2:2 and 4:4:4 |
| SDI Audio Sampling |
Television standard sample rate of 48 kHz and 24 bit. |
| SDI Color Precision |
4:2:2 and 4:4:4 |
| SDI Color Space |
YUV and RGB |
| SDI Auto Switching |
Automatically detects SD, HD or 6G‑SDI. |
| ASI Support |
Yes |
| Power Requirements |
| Power Supply |

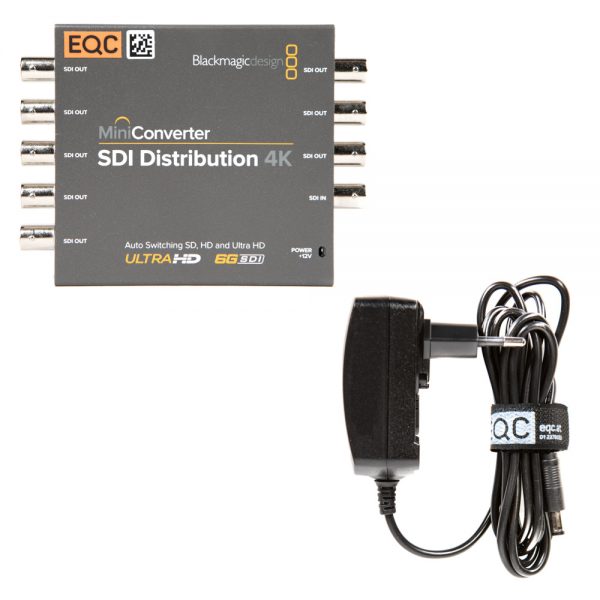

+12V universal power supply included with international socket adapters for all countries. Cable tie point. |
| Power Consumption |
4.80 Watts |
| Operational Voltage Range |
12 ‑ 31V DC |
| Operating Systems |
Mac 10.14 Mojave, Mac 10.15 Catalina or later.Windows 8.1 and 10. |
| Environmental Specifications |
| Operating temperature |
0° to 40° C (32° to 104° F) |
| Storage temperature |
-20° to 45° C (-4° to 113° F) |
| Relative Humidity |
0% to 90% non-condensing |
