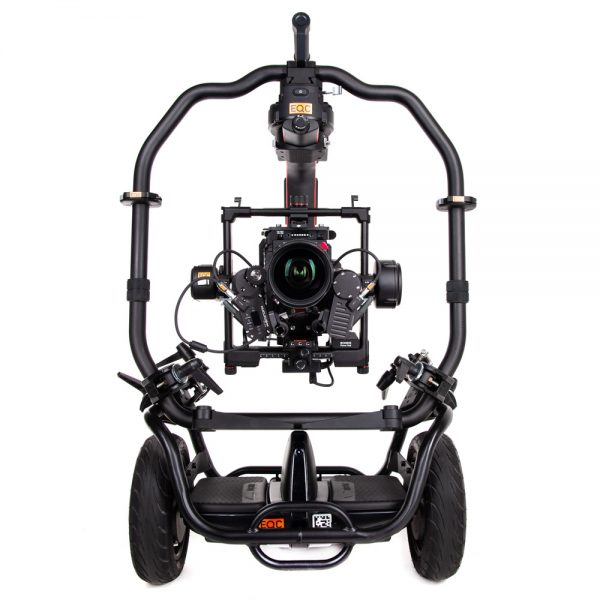

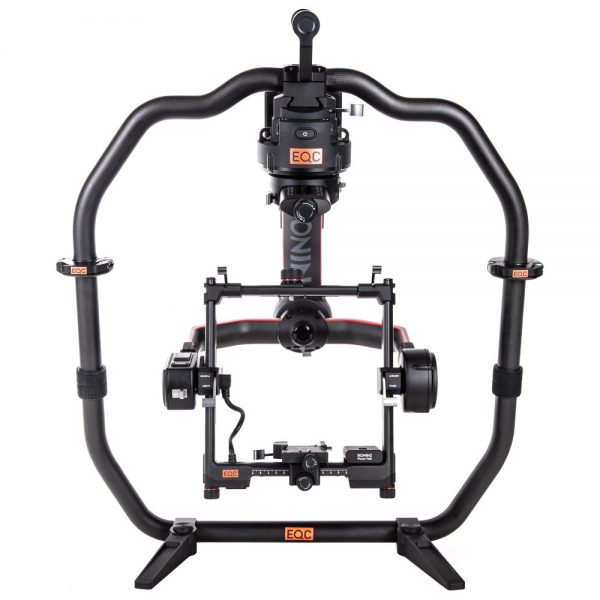

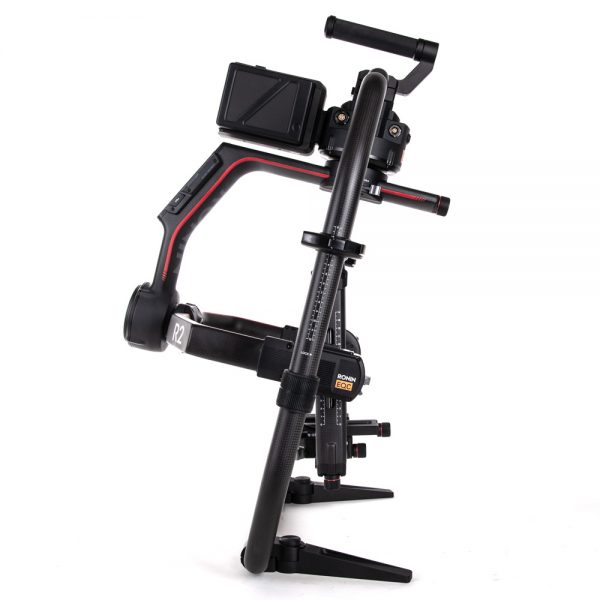

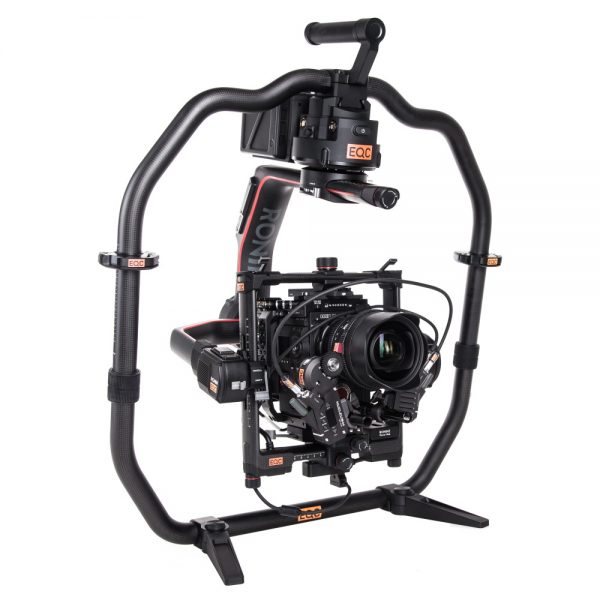

DJI Ronin 2 Professional Gimbal System


  • Heavy duty camera gimbal system
  • 14kg payload capacity
  • Enhanced SmoothTrack algorithm and GPS
  • Upright, underslung and briefcase modes
  • 2-Axis mode for Steadicam-use
  • Retractable feet / self-supporting design
  • Camera control for select cameras
  • 2.4/5.8 GHz switchable remote
  • Up to 1km control range

320,00 /Shoot Day

1 Day
2 Days
3 Days
4 Days
5 Days
1 Week
€320,00
€608,00
€864,00
€1.088,00
€1.280,00
€1.568,00
+ 10% discount for online bookings · Prices excl. VAT and 7% insurance

To the description ↓

DJI Ronin 2 Professional Gimbal System Specs
Electrical and Mechanical
Working Current Static: 300 mA (at 22.8 V)
Dynamic: 500 mA (at 22.8 V)
Locked Motor: Up to 15 A (at 22.8 V)
Performance
Payload Capacity 13.6 kg (30 lb)
Precision of Control ± 0.02°
Maximum Controlled Rotation Speed Pan Axis: 360°/s
Tilt Axis: 360°/s
Roll Axis: 360°/s
Controlled Rotation Range Pan Axis Control: 360° continuous rotation
Tilt Axis Control: ±135°
Roll Axis Control: ±30°
Gimbal Controller
CPU 32-bit ARM processor
Sensors Independent IMU module
Temperature sensors
Positioning GPS
Operation Modes Underslung
Upright
Briefcase
Interface Built-in touch panel
Receiver
Frequency 2.4 GHz / 5.8 GHz switchable
Connectivity
Wireless Bluetooth 4.0
Wired 1 x D-Bus
1 x USB Type-C
Accessory Power Ports 4 x 14.4 V camera cage (combined 8 A)
2 x 12.6 V pan motor (combined 4 A)
1 x 12.6 V D-Tap (8 A)
System Requirements
Assistant Software Windows 7 or above
macOS 10.11 or above
iOS 9 or above
Android 4.4 or above
General
Camera Tray Dimensions Maximum Depth from Center of Gravity on Baseplate: 245 mm
Maximum Height Measured from Top of Baseplate: 165 mm
Maximum Width: 180 mm
Mounting Compatibility Handheld
Car mount
Aerial
Tripod
Steadicam
Operating Temperature -20 to 50°C (-4 to 122°F)
Dimensions (W x D x H) Including Handle Bar: 630 x 416 x 720 mm (24.8 x 16.4 x 28.3")
Excluding Handle Bar: 350 x 416 x 530 mm (13.8 x 16.4 x 20.9")
Weight Including Handle Bar: 6.4 kg (14 lb)
Excluding Handle Bar: 5.0 kg ( 11 lb)

Description &In the Case

Description

The versatile DJI Ronin 2 Professional Gimbal System is suitable for use handheld, or mounted in a variety of ways including to a drone, Steadicam, vehicle mount, and more.

An update from the original Ronin, this motorized stabilization system is suitable for a range of camera and lens configurations, boasting a payload capacity of 13.6 kg. This means it can be used for everything from DSLRs up to cinema cameras.

Performance

With up to eight times more powerful motors than previous iterations, Ronin 2 can withstand sustained speeds of over 120 km/h with camera builds as heavy as 14 kg. Thanks to encoded motors and enhanced precision, the Ronin maintains the same 0.02° of accuracy as its predecessors.

Upgraded high torque motors allow the gimbal to support a wider range of cameras, resist high winds and G-forces caused when mounted onto a car, and keep it moving smoothly in flight.

Simplified Operation

Making fine adjustments, which is essential for proper camera balancing, is now simplified with integrated adjustment knobs and a redesigned camera mounting base.

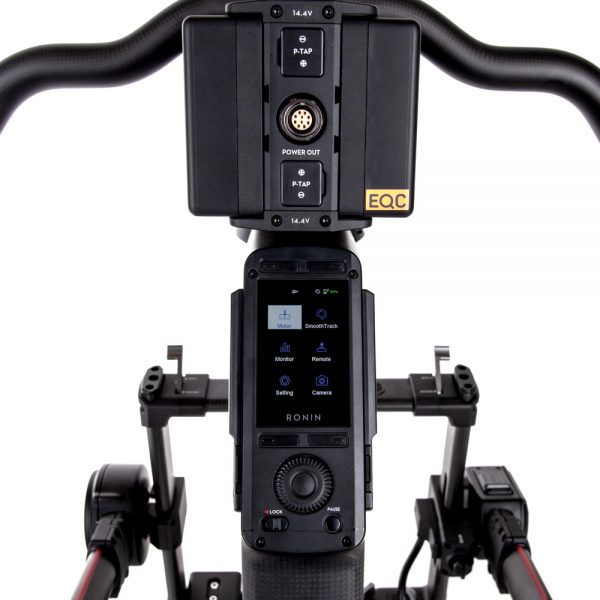

A dedicated high-brightness touchscreen for settings and adjustments has been integrated into Ronin 2, streamlining and accelerating gimbal setup. Tactile buttons including motor pause are placed easily within reach.

The extensively refined, redesigned, and expanded Gimbal Assistant app helps create content with minimum effort via new features such as CamAnchor, Time-Lapse, and Panorama, providing a more intuitive and easier-to-use full control system for Ronin 2.

Power

Two batteries on Ronin 2, and the ability to run with only one, allows batteries to be charged and swapped without interrupting a shoot. You can also detach the dual battery mount and power the system through the power cable.

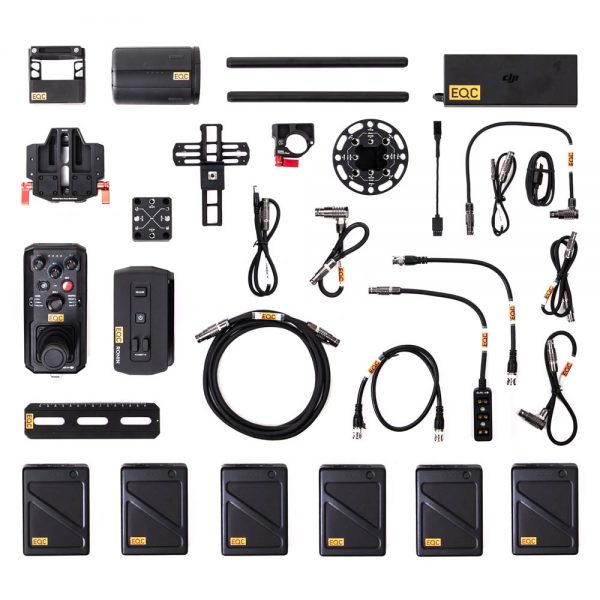

In the Case
  • DJI Ronin 2 Gimbal
  • Grip

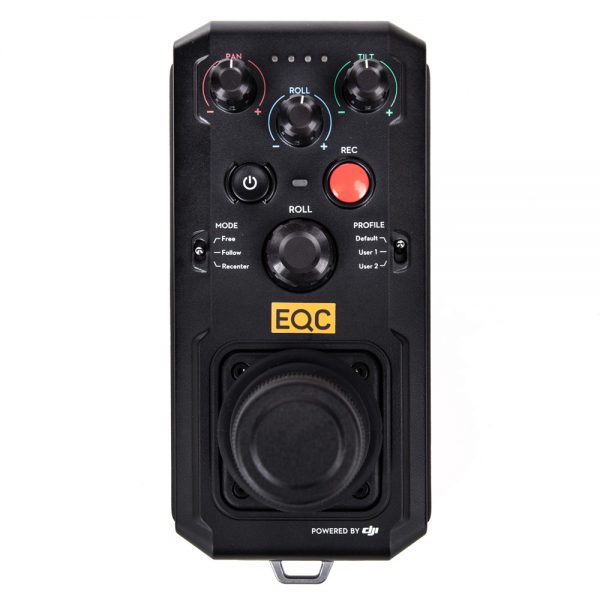

  • Remote controller
  • 6x intelligent battery
  • TB50 dual battery mount
  • Battery charger
  • Battery charger power cable
  • Quad charging hub
  • Power hub
  • Camera top cross bar
  • Camera base plate
  • Accessory mount
  • 2x 15mm rod
  • 15mm focus rod mount
  • Universal mount
  • Top mounting block
  • Motion block
  • Accessories bag including: ARRI Alexa Mini power cable
  • ARRI Alexa Mini start/stop cable
  • RED power cable
  • RED RCP control cable
  • Canbus to 5.5mm power cable
  • 2-pin power cable
  • Remote battery mounting cable
  • Ronin 2 batterypack > ARRI Alexa 35 power cable 100cm
  • Triple D-Tap breakout box
  • SDI in cable
  • SDI out cable
  • USB type-c data cable
  • UART to D-Bus cable
  • 2x tilt extension short
  • 2x tilt extension long
  • 4x 3/8″-16 screw
  • 4x 1/4″-20 screw
  • 10x M4-10 screw
  • 6x M4-14 screw
  • 4x 1/4″ hex screw
  • 2x Hex key
  • Neck strap
  • Quick start guide

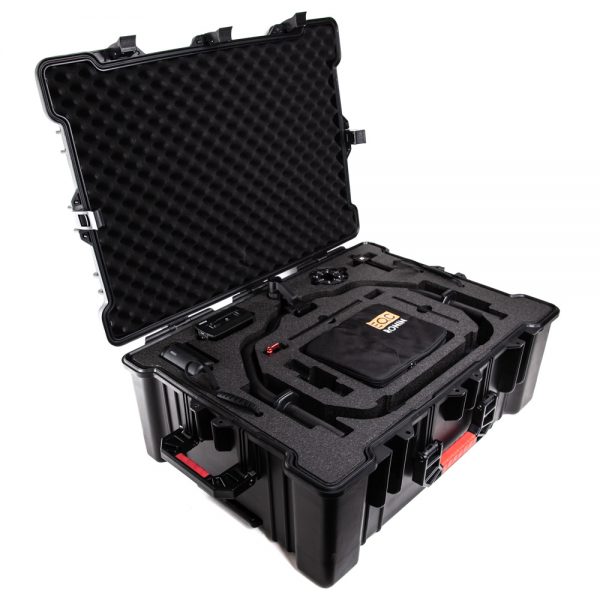

  • Original hard case
