SKAARHOJ PTZ Pro


  • IP PTZ controller with PoE support
  • 3-axis Hall Effect joystick
  • Built-in SDI option
  • Supports Multiple PTZ Encoders
  • RGB Backlit Keys with Labeling Presets
  • Controls Pan/Tilt Remote Head and Blackmagic Micro Studio Camera 4K

110,00

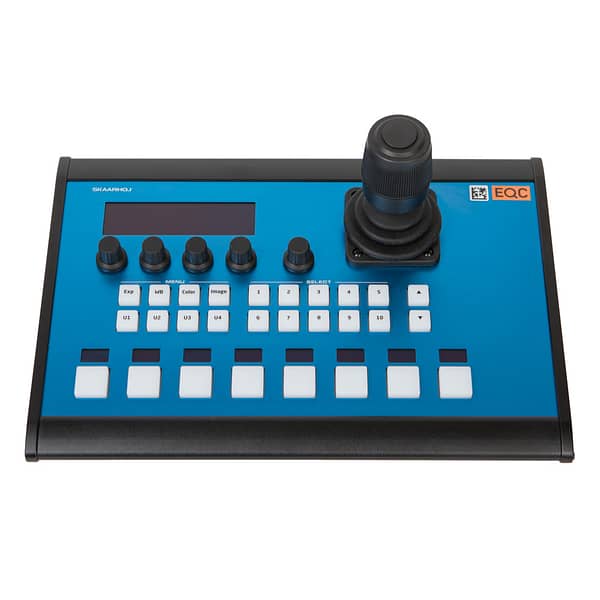

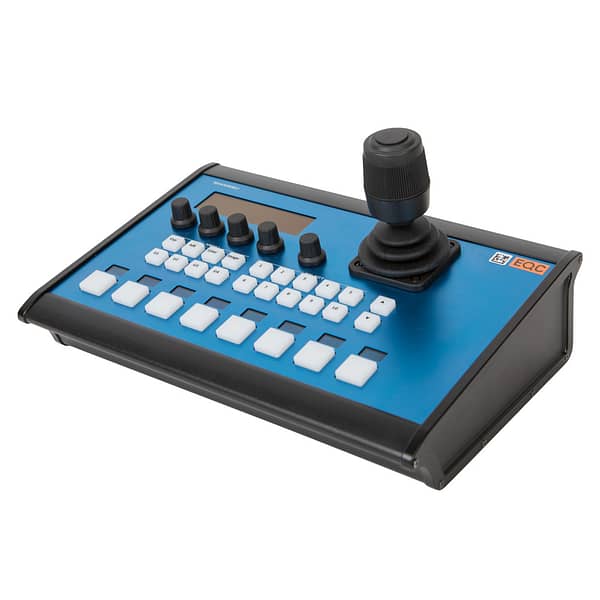

Perform precise pan/tilt/zoom control movements and have configuration and selection of PTZ cameras at your fingertips with the SKAARHOJ PTZ Pro. Featuring a precision 3-axis joystick with “Hall Effect” and dedicated focus knob, this compact controller makes it easy to pan, tilt, and rotate your cameras while also controlling their focus and zoom. The control panel features four backlit encoder knobs, ten camera selection buttons, and multiple programmable multifunction keys for presets and menu navigation.

The PTZ Pro runs the SKAARHOJ-developed open-source UniSketch OS, which is user programmable to fit specific workflows. PoE (Power-over-Ethernet) technology simplifies setup by enabling data and power to travel via a single cable. The controller is compatible with VISCA devices as well as other IP-controlled cameras from brands such as AIDA, Lumens, NewTek, Panasonic, PTZ Optics, and Sony.

The included SDI option allows control with Blackmagic Arduino Shields and fiber converters.

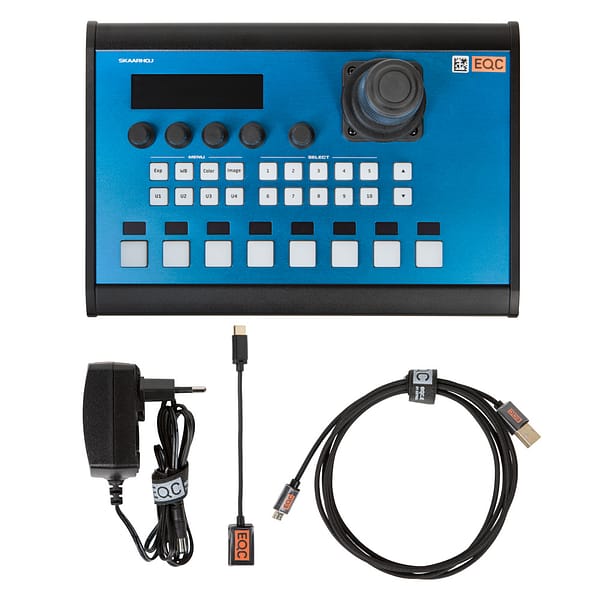

In the Case

  • SKAARHOJ PTZ Pro with Hall Effect joystick and SDI option
  • USB A > USB micro cable 2m
  • USB A > USB C OTG adapter
  • AC adapter
  • Quick start guide

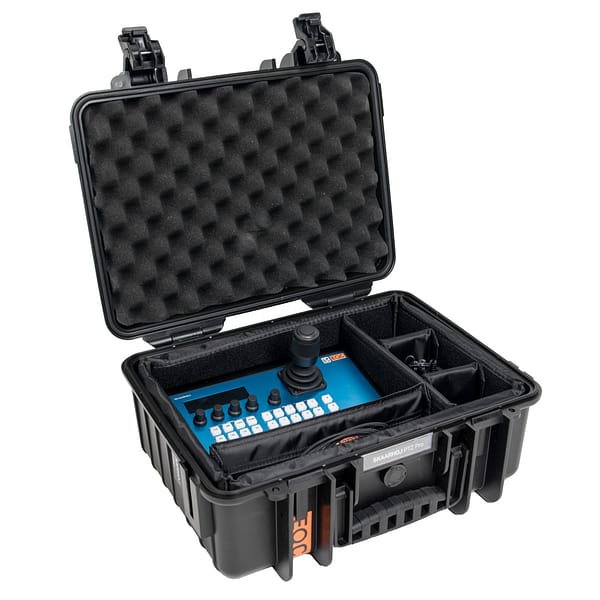

  • Hard case





General
Number of Supported Cameras 10 Channels
Supported Control Protocols IP
VISCA
Control Interface 1 x RJ45 (IP Control, VISCA) Output
Other I/O 1 x USB Micro-B (USB 3.1 / USB 3.2 Gen 1) Input
Controls 1 x Pan/Tilt Joystick
1 x Focus Knob
4 x Multifunction Knobs
10 x Multifunction, Camera Selection Buttons
10 x Multifunction Buttons
8 x Programmable Buttons
Presets 10 via IP, VISCA
Display
Touchscreen No
Power
PoE Support PoE 802.3af
Power Connectors 1 x JEITA
DC Input Power 12 VDC
Physical
Security Lock Support None
Dimensions 25.7 x 17.8 x 13.2 cm (10.1 x 7 x 5.2″)
Weight 1.2 kg (2.7 lb)
