Blackmagic Design Mobile Live Editing Unit 4K

  • Flexible 1o bit 4K live editing unit
  • Custom built low noise fans for quiet operation
  • 10-channel SDI switcher
  • Supports NTSC/PAL/HD/UHD 4K
  • 10 x built-in frame synchronizers
  • HD multiview output through HDMI and SDI
  • 4 x keyers total: 3 x luma, 1 x chroma
  • Smart Videohub 40×40 SDI distributor included
  • ATEM 1 M/E Broadcast Panel included
  • Operator required!

€350,00

Related products

Designed for livestream and broadcast application, the Blackmagic Design Mobile Live Editing Unit 4K is a compact, powerful and ready-to-operate solution. Based on the popular ATEM 1 M/E Production Studio 4K, the unit offers ten single-link 6G-SDI inputs and one HDMI input on the rear (shared with one of the SDI inputs). You can connect up to 10 4K sources, featured by a reference video input for synchronizing using tri-level or black burst sync. The Unit also includes the Smart Videohub 40×40 with as well as the ATEM 1 M/E Broadcast Panel for maximum flexibility.

The switcher provides eight video outputs that are always active. It features two SDI and one HDMI program output, both of which deliver UHD/HD/SD, with three pass-through (AUX) UHD/HD/SD outputs that can deliver a clean program feed without any downstream effects.

Furthermore, the switcher features a down-converted HD output for monitoring on an SDI-equipped HD monitor. Multiview monitoring is 1080i only over dedicated SDI or HDMI output, which allows you to view the program, preview, and eight live sources at the same time.

Livestream and Live Production

The outputs have embedded talkback audio for studio setups. Blackmagic Design Studio Cameras, as the optional available Micro Studio Cameras 4K can also be controlled from the switcher as well as the Blackmagic Design Pocket Cinema Camera 6K and 4K, connected trough our BiDirectional SDI/HDMI 3G Micro Converter.

When you want to re-edit your production in the postproduction, we recommend you our Softron Multicam Logger.

Have a look at our suitable Multi-Stream Recorder and Monitors.

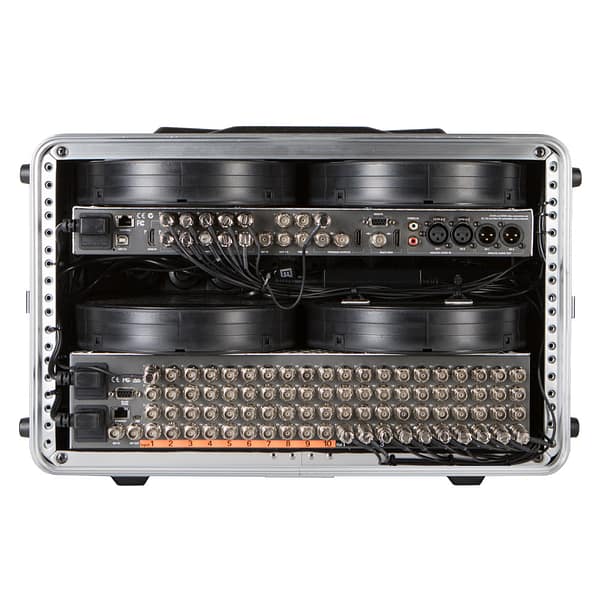

In the Case

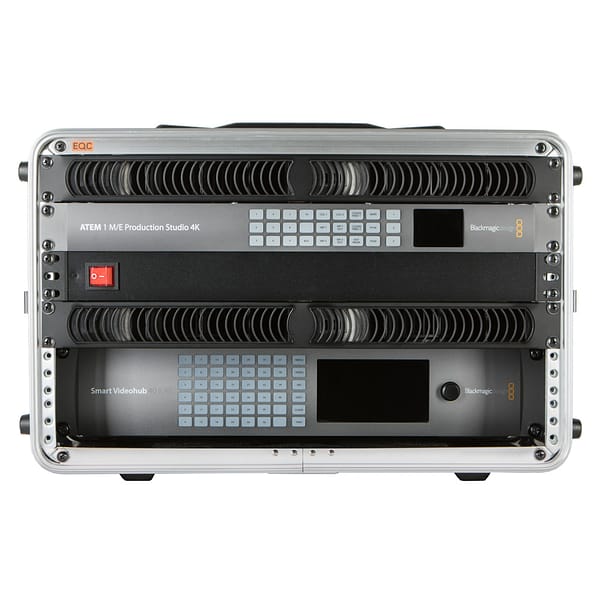

  • ATEM 1 M/E Production Studio 4K
  • Smart Videohub 40×40
  • ATEM 1 M/E Broadcast Panel
  • 2x fan unit
  • USB A > USB B cable 2m
  • USB A > USB mini cable 2m
  • 2x USB A > USB C OTG adapter
  • 11x BNC cable (integrated)
  • t.racks Power 8 S USB
  • Case for broadcast panel
  • Rack case
Operator Required

This unit requires an operator. For further information, please call us or write to: rental@eqc.at

Category:

ATEM 1 M/E Production Studio 4K

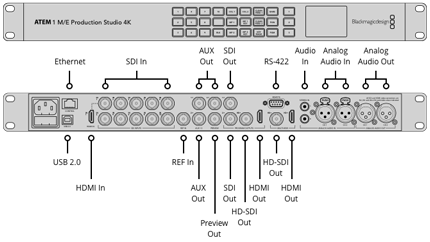

Connections
Total Video Inputs

11 with 10 active.

Total Video Outputs

10

Total Aux Outputs

3

SDI Rates

270Mb, 1.5G, 3G, 6G

Total Audio Inputs

2 x XLR. 2 x RCA.

Total Audio Outputs

2 x XLR Program.

Timecode Connections

None

Reference Input

Tri-Sync or Black Burst.

Video Input Re‑Sync

On all 10 inputs.

SDI Video Inputs

10 x 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio.

HDMI Video Input

1 x HDMI type A. 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio.

Analog Audio Outputs

2 x XLR.

SDI Audio Outputs

2 Ch embedded into SDI output on all outputs.

SDI Program Outputs

2 x 10-bit SD/HD/Ultra HD 4K switchable.

HDMI Program Outputs

1 x HDMI type A, 10-bit SD/HD/Ultra HD 4K switchable.

Down Converted SDI Program Output

1 x 10-bit (Ultra HD 4K to HD)

SDI Preview Output

1 x 10-bit SD/HD/Ultra HD 4K switchable.

Total Multi Views

1

SDI Multi View Outputs

1

HDMI Multi View Outputs

1

Control Panel Connection

Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network.

Tally Output

Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included.)

Computer Interface

1 x USB 2.0 port.

ATEM 1 M/E Production Studio 4K

Standards
SD Video Standards

525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.94
1080i50, 1080i59.94

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 424M.

Video Sampling

4:2:2.

Color Precision

10-bit

Color Space

REC 601, REC 709, REC 2020.

HDMI Input Resolutions for Computers

720 x 480i 59.94Hz,
720 x 576i 50Hz,
1280 x 720 59.94Hz,
1280 x 720 50Hz,
1920 x 1080 50Hz,
1920 x 1080 59.94Hz,
3840 x 2160 23.98Hz,
3840 x 2160 24Hz,
3840 x 2160 25Hz,
3840 x 2160 29.97Hz.

Product Specifics
Upstream Keyers

4 with Chroma/Linear/Luma key.

Downstream Keyers

2

Talkback Support

None

Mix Minus Support

None

Chroma Keyers

4

Linear/Luma Keyers

7

Transition Keyer (Stinger/DVE)

1 Stinger, 1 DVE.

Total Number of Layers

8

Pattern Generators

7

Color Generators

2

DVE with 3D Borders & Drop Shadow

1

Control Panel Compatibility

ATEM 1 M/E Broadcast Panel preferred.
Compatible with ATEM 2 M/E Broadcast Panel. Includes ATEM Software Control Panel.

Media Player
Media Players

2

Channels

Fill and key for each Media Player.

Media Pool Still Image Capacity

32 with fill and key.

Media Pool Clip Capacity

2 with fill and key.

Media Player Clip Length in 720 HD

1600 frames.

Media Player Clip Length in 1080 HD

720 frames.

Media Player Clip Length in
Ultra HD

180 frames

Maximum Clip Length in NTSC/PAL

3600 frames.

Media Pool Still Image Format

PNG, TGA, BMP, GIF, JPEG and TIFF.

Media Pool Video File Format

TGA Sequence.

Media Pool Audio File Format

WAV, MP3 and AIFF.

Multi View Monitoring
Multi View Monitoring

1 x 10 views.

Routable Windows

8

Tally

Red for program and green for preview indication.

Windows Source Labels

Yes

Multi View Video Standard

HD

Display
Interface

Minimum monitor resolution of 1366 x 768.

Front Panel

Built in LCD monitor for video
and 42 LED buttons for Aux switching.

Processing
Colorspace Conversion

Hardware based real time.

Processing Delay

< 2 Lines.

Audio Mixer

12 input x 2 channel mixer.
Selectable On/Off/Audio-Follow-Video.
Level and Peak metering.
Master gain control.
Analog outputs may be used for separate monitoring.

4K to HD Down Conversion

Yes, program x 1.

Software
Control Panel Included

ATEM Software Control Panel included free for
Mac 10.12 Sierra, Mac 10.13 High Sierra or later and Windows 8.1 64-bit or Windows 10 64‑bit.

Software Updates

Using USB 2.0 connection directly connected
to Mac OS or Windows computers. Includes
ATEM Setup Utility

Configuration

Set via ATEM Software Control Panel, excluding
ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis.

Smart Videohub 20×20

Connections
SDI Video Inputs

20 x 10 bit SD-SDI, HD-SDI and 6G-SDI.

SDI Video Outputs

20 x 10 bit SD-SDI, HD-SDI and 6G-SDI.

SDI Rates

DVB-ASI, 270Mb, 1.5G, 3G, 6G.

Video Input Re-Sync

None.

SDI Reclocking

On all SDI outputs

Reference Input

Tri-Sync or Black Burst.

Control Panel Connection

Ethernet.

Serial Control Connection

RJ-7 RS-422.

Multi Rate Support

Auto detection of SD, HD or 6G-SDI. Simultaneous routing of 4K, HD, SD video and DVB-ASI.

Updates

USB.

Router Control

21 buttons for local control of Videohub. 6 buttons and scroll wheel for control of LCD display or RJ45 Ethernet.

Router Configuration

Via front panel LCD or use either RJ45 Ethernet or USB 2.0 for setting IP address only.

RS-422 Router Control

1 x input for controlling router crosspoint switching.

Smart Videohub 20x20

Standards
SD Video Standards

525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60

2K Video Standards

2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30

4K Video Standards

4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B, ITU-R BT.656 and ITU-R BT.601.

SDI Video Sampling

4:2:2 and 4:4:4

SDI Audio Sampling

Television standard sample rate of 48kHz and 24 bit.

SDI Color Precision

4:2:2 and 4:4:4 10 bit.

SDI Color Space

YUV or RGB.

SDI Auto Switching

Automatically selects between SD-SDI, HD-SDI, 6G-SDI and DVB-ASI on each input so that each input can be running a different television standard.

SDI Metadata Support

Video payload identification ancillary data as per SMPTE 352M.

Control
Built in Control Panel

20 buttons for local control of Videohub with 6 buttons and scroll wheel for menu control. 2.2 inch color display.

External Control Panel

Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Blackmagic Smart Control and Blackmagic Master Control hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol.

Display

Built in LCD for video and menu settings.
