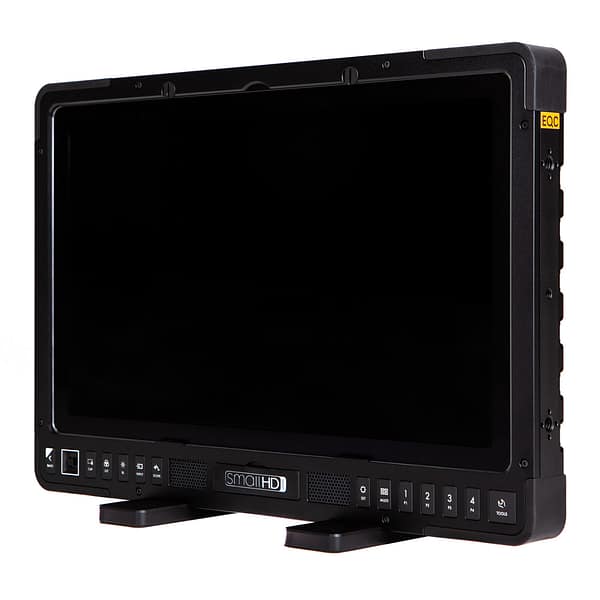

SmallHD 1703 P3X Full-HD Production Monitor 17″

  • 17″ 1920 x 1080 IPS LCD monitor
  • 100% DCI-P3 color gamut coverage
  • Focus assist and peaking tools
  • HD scopes
  • Dual view
  • V-Mount plate

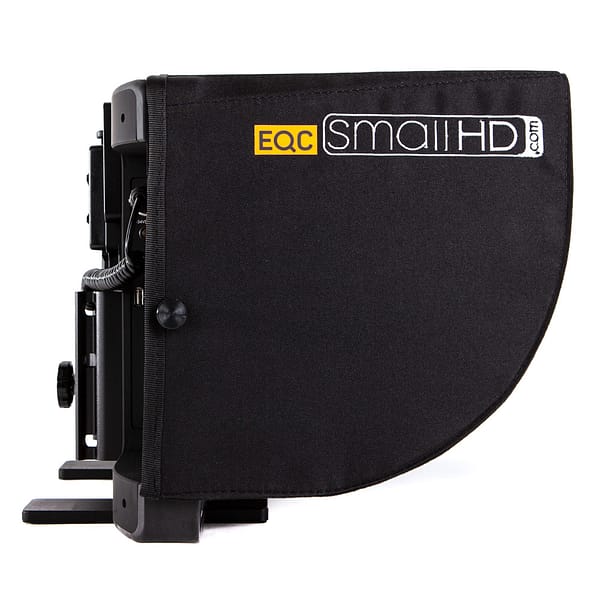

  • 3-Sided sunshade
  • C-mount/VESA-compatible mounting

€80,00

Related products

Whether producing content for broadcast or cinema distribution, you can depend on SmallHD 1703 P3X 17″ Full-HD Production Monitor to brightly display accurate colors in professional field, studio, and post-production settings.The 1703 P3X is color calibrated by SmallHD to ensure consistently accurate color representation, with 100% coverage of both REC 709 and DCI-P3 color spaces.

Color Depth & Brightness

True 10-bit color depth can differentiate between 1024 levels of brightness, per channel, for smooth gradients essential for critical image analysis. While the LED backlight provides 900 cd/m² of brightness for viewing in daylight or brightly lit conditions, a special 100 cd/m² “studio mode” provides accurate brightness levels for light-controlled post-production environments.

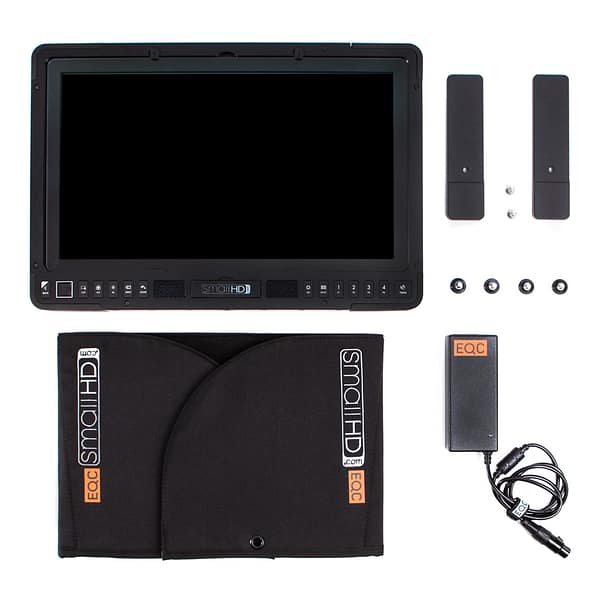

In the Case
  • SmallHD 1703 P3X

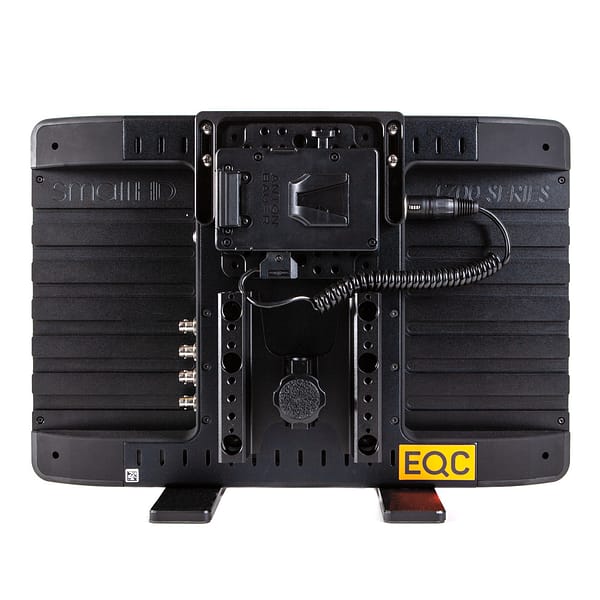

  • V-Mount battery plate
  • D-Tap > XLR4 AC cable
  • Sun hood
  • Table stand
  • AC adapter
  • AC cable
  • Carrying handle

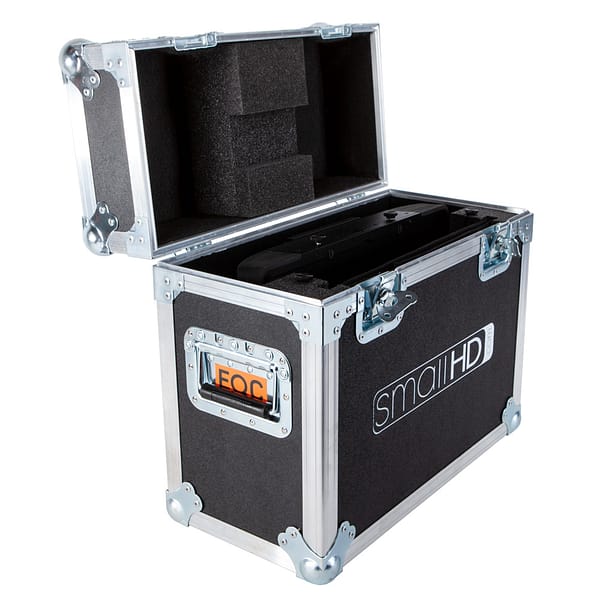

  • Hard case
Categories: ,
Display
Panel Type IPS-Type LCD
Display Size 17.0″ / 43.0 cm
Screen Resolution 1920 x 1080
Aspect Ratio 16:9
Viewing Angle Horizontal: 178° (89/89)
Vertical: 178° (89/89)
Maximum Brightness 900 cd/m2
Contrast Ratio 1400:1
Bit Depth / Color Support 10-Bit (1.07 Billion Colors)
Pixels Per Inch (ppi) 133 ppi
Color Gamut 100% DCI-P3
Image Controls False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, Screen Markers, Underscan, Waveform
I/O
Video 2 x 3G-SDI (BNC) Input
1 x HDMI Type A Input
2 x 3G-SDI (BNC) Output
1 x HDMI Type A Output
Embedded Audio HDMI
SDI
Audio 1 x 3.5 mm Headphone Output
Built-In Speaker None
Power 1 x 2-Pin LEMO Output
3 x USB Type-A Output
1 x IEC Input
1 x 4-Pin XLR Input
Card Slot 1 x SD
Format Support
Video Format SDI (10-Bit 4:2:2 YCC)
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24/25/29.97/30
1080i: 50/59.94/60
720p: 23.98/24/25/29.97/30/50/59.94/60
NTSC
PAL
HDMI (8/10/12-Bit 4:4:4 RGB and YCC)
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24/25/29.97/30
1080i: 50/59.94/60
720p: 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
576p: 50/100
480p: 59.94/60/119.88/120
NTSC: 59.94/60/119.88/120
PAL: 50/100/200
Power
Battery Type V-Mount
Mounting
Environmental
Certifications CE, FCC, IC, RoHS, as per Manufacturer
Operating Temperature 0 to 37.8°C (32 to 100°F)
Storage Temperature -17.8 to 40°C (0 to 104°F)
General
Dimensions (W x H x D) 292 x 445 x 64 mm (11.5 x 17.5 x 2.5″)
Weight 5.5 kg (12.1 lb)
