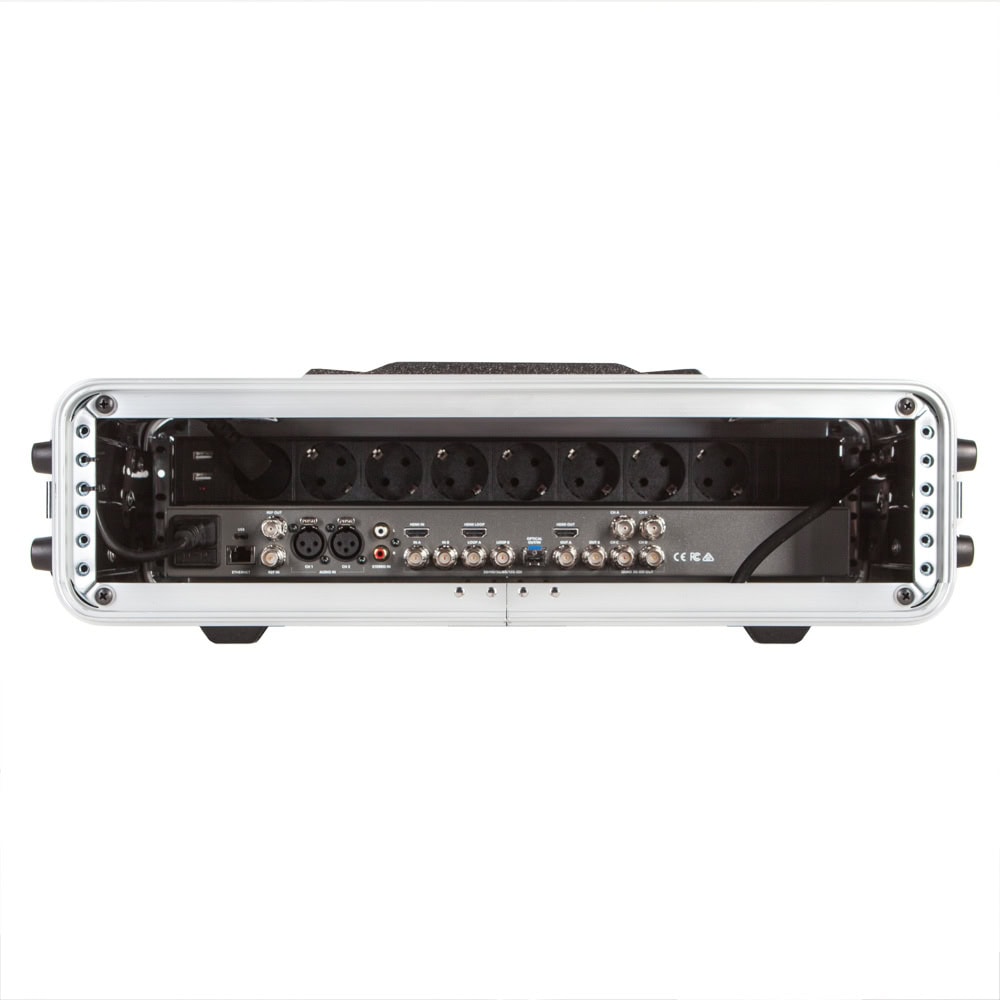

| SDI Video Inputs |
1x BNC (IN A) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. |
|
1x BNC (IN B) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. Usable as 2nd input or for dual link input for 4:2:2 3G or 6G Ultra HD |
| SDI Video Input L oops |
1x BNC (IN A Loop) – Reclocked, 10-bit SD, HD, 2K, 3G HD, 6G and 12G Ultra HD auto switching. |
|
1x BNC (IN B Loop) – Reclocked, 10-bit SD, HD, 2K, 3G HD, 6G and 12G Ultra HD auto switching. |
| SDI Video Outputs |
1x BNC (OUT A) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. |
|
1x BNC (OUT B) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. Usable as dual link output for 4:2:2 3G or 6G Ultra HD. |
| Quad SDI Video Outputs |
4x BNC (Channels A, B, C, D) – 10-bit 3G-SDI Quad Link or Quad HD Split for Ultra HD p50/59.94/60; 10-bit 1.5G-SDI Quad HD Split for Ultra HD p23/24/25/29/30. For other output formats, these connectors will supply four replicated SDI outputs. |
| HDMI Video Inputs |
1x HDMI 2.0 type A connector. YUV or RGB, auto switching. |
| HDMI Video Loop Inputs |
1x HDMI 2.0 type A connector. Active Input loop. |
| HDMI Video Outputs |
1x HDMI 2.0 type A connector. YUV or RGB, user selectable. |
| SDI Audio Inputs |
16 channels in SD, HD, 3G HD, 2K and Ultra HD. |
| SDI Audio Outputs |
16 channels in SD, HD, 3G HD, 2K and Ultra HD. |
| HDMI Audio Inputs |
8 channels in SD, HD, 3G HD, 2K and Ultra HD. |
| HDMI Audio Outputs |
8 channels in SD, HD, 3G HD, 2K and Ultra HD. |
| Optical Fiber Connection (optional) |
1x SMPTE optical fiber SFP socket. |
| Optical Fiber Video Inputs |
1x 10bit SD, HD, 3G HD, 2K, Ultra HD auto switching. |
| Optical Fiber Video Outputs |
1x 10bit SD, HD, 3G HD, 2K, Ultra HD auto switching. |
| Optical Fiber Audio Inputs |
16 channels in SD, HD, 3G HD, 2K and Ultra HD. |
| Optical Fiber Audio Outputs |
16 channels in SD, HD, 3G HD, 2K and Ultra HD. |
| Analog Audio Inputs |
2x XLR – 2 channels professional balanced analog audio (XLRs are shared with AES/EBU inputs) .
2x RCA – stereo unbalanced analog audio on RCA connectors for consumer equipment. |
| AES/EBU Digital Audio Inputs |
2x XLR – 2 pairs (4 channels) professional 110Ω balanced digital audio (XLRs are shared with analog inputs) |
| Dolby® Support Built In |
Dolby® AC-3 pass through in all conversions. Dolby® E pass through except during video frame rate conversions. |
| Timecode Inputs |
Support for VITC/ATC. No support for LTC. |
| Timecode Outputs |
Support for VITC/ATC. No support for LTC. |
| Multi Rate Support |
SDI connections are switchable between standard definition, high definition and Ultra HD. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 2K SDI, 3G HD, 6G and 12G Ultra HD. |
| Reference Input |
1x BNC – Black Burst in SD or Tri-level sync in HD. |
| Reference Output |
1x BNC – Internal reference generator providing blackburst or tri-level sync output at the current output frame rate. |
| Computer Interface |
1 x USB type C port for software updates. 1 x RJ45 Gigabit Ethernet for remote control and configuration. |

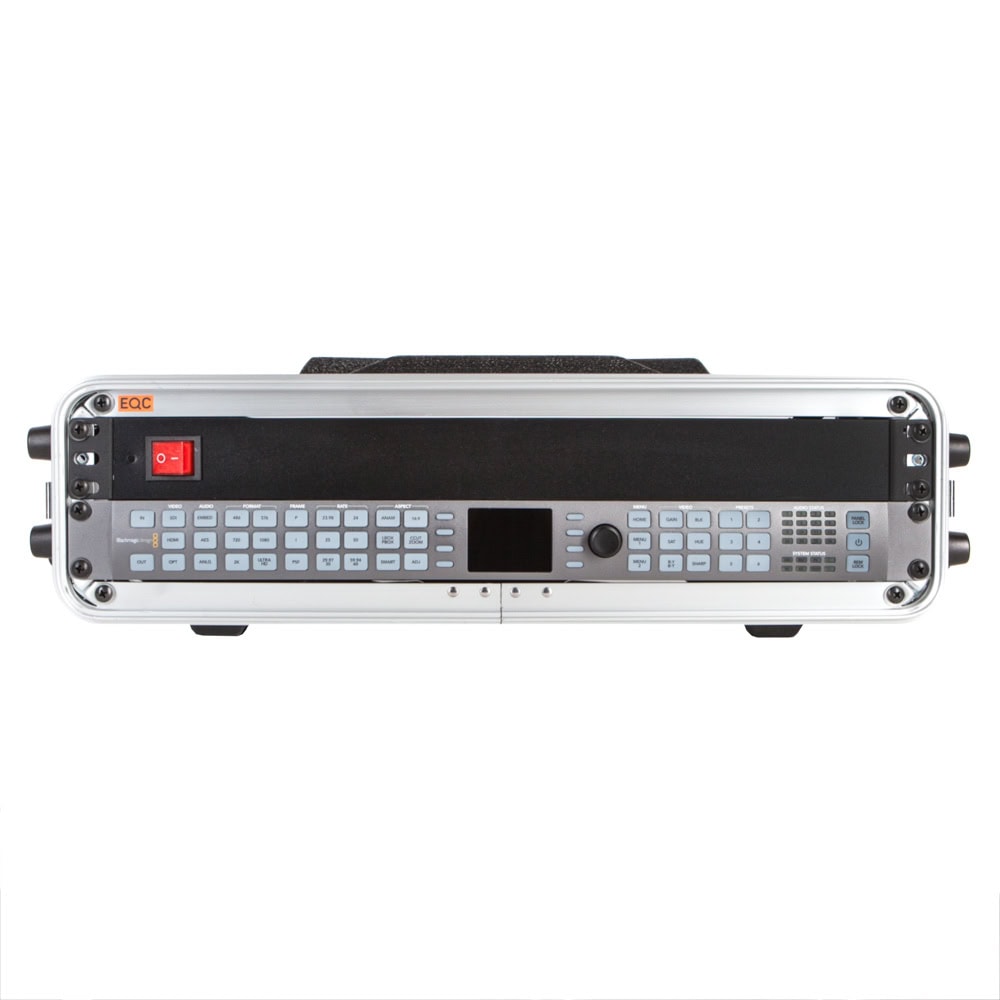

| Processor Interface |
Illuminated pushbuttons, status LEDs and LCD with easy to use onscreen menus. |
| Standards |
| SD Video Standards |
525i59.94 NTSC, 625i50 PAL |
| 1.5G-SDI HD Video Standards |
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60 |
| 3G-SDI HD Video Standards |
1080p50, 1080p59.94, 1080p60 levels A and B |
| 2K Video Standards |
2K DCI 23.98p, 2K DCI 24p
2K DCI 23.98PsF, 2K DCI 24PsF |
| Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| SDI Compliance |
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M |
| SDI Metadata Support |
VITC/ATC support, SMPTE 12M. Video indexing support including WSS, RP186 and AFD, SMPTE 2016. Closed captioning support for conversions to and from 608 and 708, SMPTE 334M. |
| Audio Sampling |
Television standard sample rate of 48kHz and 24-bit HD, 20‑bit SD. |
| Video Sampling |
4:2:2 |
| Color Precision |
10-bit |
| Color Space |
REC 601, REC 709 |
| SDI Video Standards |
525 NTSC, 625 PAL, 720HD, 1080HD, 2K DCI and Ultra HD 3840 x 2160 switchable. |
| HDMI Color Precision |
4:2:2 10‑bit |
| Copy Protection |
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. |
| Processing |
| Aspect Ratio Conversion |
Real time variable and fixed aspect ratio conversions. |
| Real Time Video Processing |
Includes noise reduction, cadence detection with insertion/removal, scene cut detection, color correction and proc amp control |
| Low Latency Processing |
Real time processing with 2 frame latency, available for select format conversions. |
| Format Conversion |
Real time up conversion, down conversion , cross conversion and SD/HD/Ultra HD standards conversion. |
| Colorspace Conversion |
Hardware based real time |
| Still Store |
Capture a video frame into non-volatile memory from the current input signal or freeze frame buffer. |
| Freeze Frame |
Temporarily freeze incoming live video. |
| Test Patterns |
SMPTE 75% Bars; full field color bars 75%; convergence grid; multiburst ; black with selectable audio tones and selectable horizontal pattern motion. |
| Output Switching |
Output may be switched between the input video, internal black, user still frame or a freeze frame from the input video. The transition rate between output choices has a range of 0 to 5 seconds. A transition forces a dissolve through black. |
| Software |
| Software Control |
Teranex Setup software control application included free of charge for changing settings via Windows 8.1, Windows 10 and Mac. |
| Internal Software Upgrade |
Via USB type C using the included Teranex Setup application. |
| Operating Systems |
|
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later. |
|
Windows 10,
64-bit. |
| Power Requirements |
| Power Supply |
1 x built-in international AC power supply with IEC C14 inlet. IEC power cable required. 100-240V, 50‑60Hz |
| Typical Power Consumption |
42 watts |
| Environmental Specifications |
| Operating Temperature |
0° to 40° C (32° to 104° F) |
| Storage Temperature |
-20° to 45° C (-4° to 113° F) |
| Relative Humidity |
0% to 90% non‑condensing |
